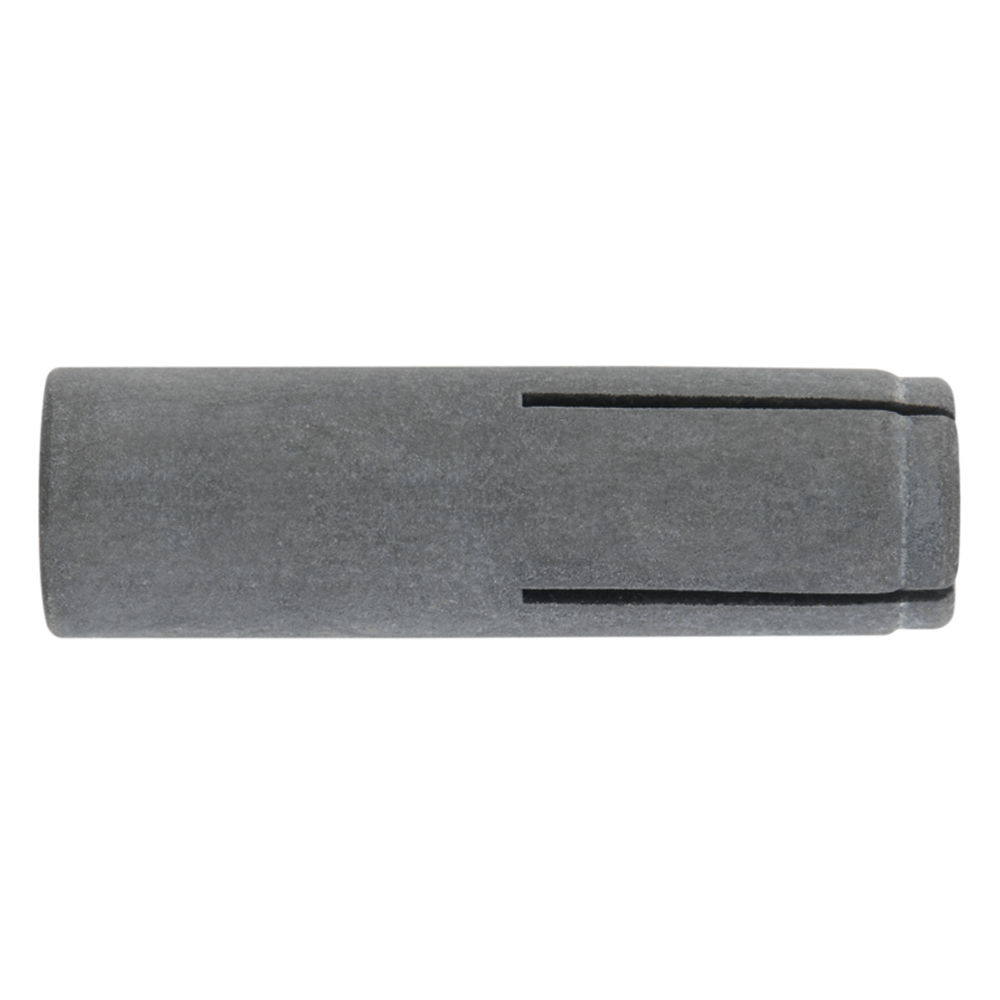

用于重负荷的内螺纹内迫壁虎. 亚特兰蒂斯 C3-L

尺寸长度最小销售单位彩盒件数外箱件数Technical Info.
M8 x 30 Ø103001001.600

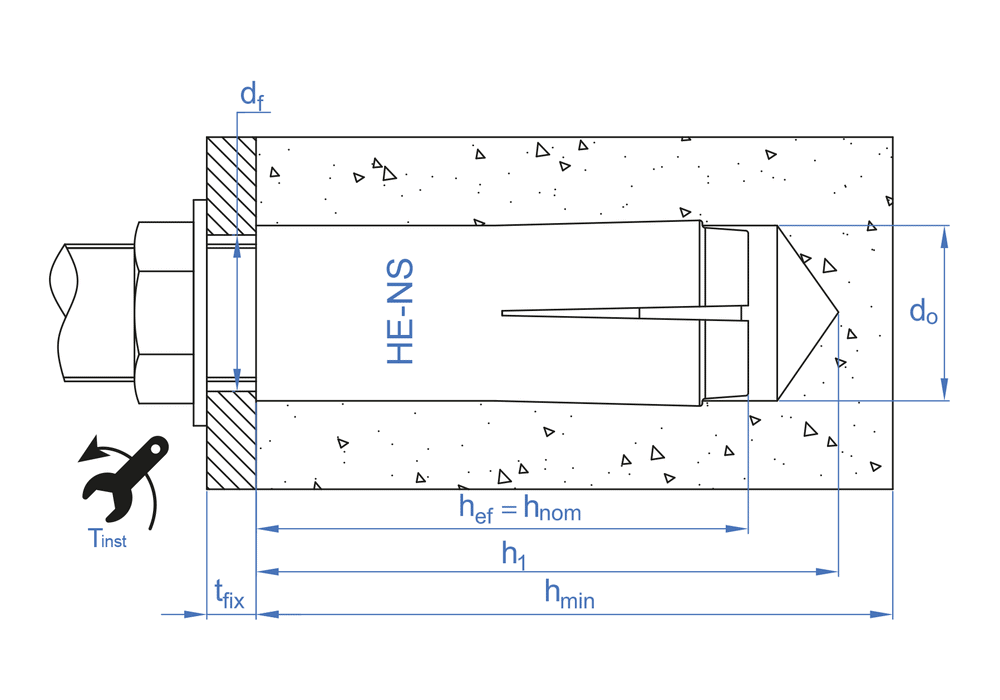

  • df - Ø 元件固定9
  • Tins - 扭矩 (Nm)11
  • hef - 有效深度30
  • hnom - 最小锚固深度30
  • h1 - 钻孔最小深度33
  • d0 - Ø 钻头10
  • hmin - Min. substrate thickness100
  • L- 长度30
M10 x 40 Ø1240050800
  • df - Ø 元件固定12
  • Tins - 扭矩 (Nm)17
  • hef - 有效深度40
  • hnom - 最小锚固深度40
  • h1 - 钻孔最小深度43
  • d0 - Ø 钻头12
  • hmin - Min. substrate thickness100
  • L- 长度40
M12 x 50 Ø1550050400
  • df - Ø 元件固定14
  • Tins - 扭矩 (Nm)38
  • hef - 有效深度50
  • hnom - 最小锚固深度50
  • h1 - 钻孔最小深度54
  • d0 - Ø 钻头15
  • hmin - Min. substrate thickness100
  • L- 长度50
M16 x 65 Ø2065025250
  • df - Ø 元件固定18
  • Tins - 扭矩 (Nm)60
  • hef - 有效深度65
  • hnom - 最小锚固深度65
  • h1 - 钻孔最小深度70
  • d0 - Ø 钻头20
  • hmin - Min. substrate thickness130
  • L- 长度65
  • [DROP-IN ANCHOR FOR MEDIUM AND HIGH LOADS] Drop-in threaded anchor for fixing medium and high-load elements into concrete. Impact-expansion anchor operating on the principle of deformation.
  • [EASY INSTALLATION] Can be easily installed using a manual expansion tool. Once installed, it allows the rods or other components used in the assembly to be removed, leaving the surface clear.
  • [HIGHLY VERSATILE ANCHOR] It can be used in the installation of suspended ceilings, sprinkler systems or for fitting pipes with clamps, amongst other applications.
  • [MANUFACTURED FROM ATLANTIS C3-L STEEL] The anchor is made from Atlantis C3-L steel. This is a corrosion-resistant material that can be used outdoors in areas with low levels of pollution.
  • [RANGE OF SIZES] INDEX A PERFECT FIXING offers this metal anchor in a range of sizes, from which you can choose depending on the type of installation.
  • Air conditioning units
  • Ceiling anchorage
  • Beach railings
  • Marquees
  • Industrial shelving
  • Street lights
  • Balcony railings
  • Wooden railings
260926
