产品 / 紧固件 / 镀锌水泥螺栓 / ETA 1级认证,梅花头

镀锌水泥螺栓. ETA 1级认证,梅花头

评估与认证

钻头直径 × 长度最大固定厚度 [mm]痕迹编号最小销售单位彩盒件数外箱件数Technical Info.
Ø6 x 405TX3001001.600

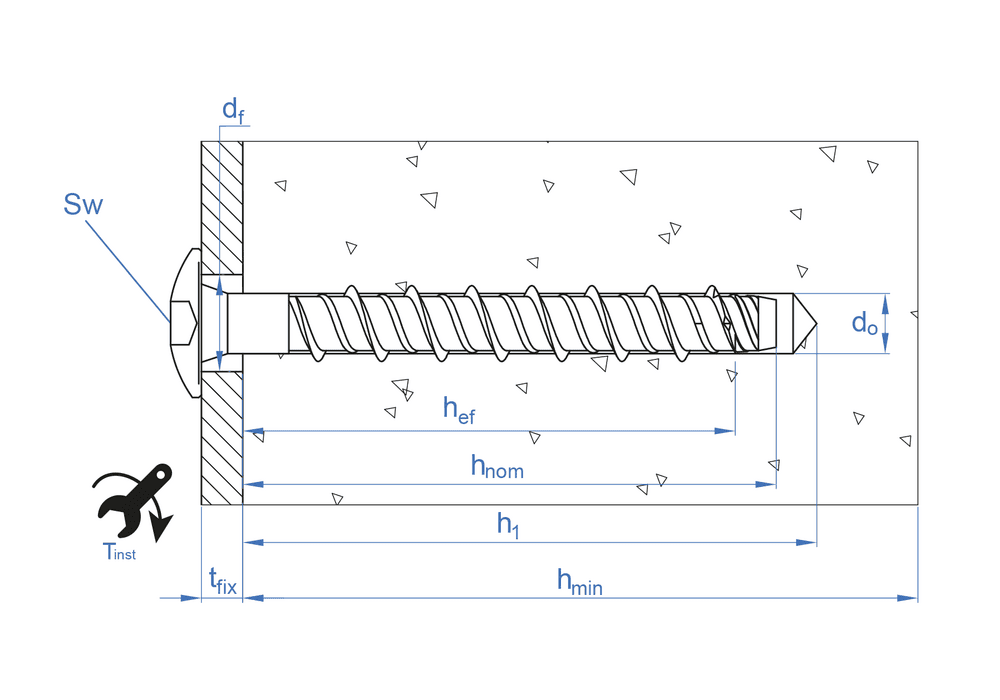

  • tfix - 最大夹具厚度5
  • SW-安装关键TX30
  • df - Ø 元件固定9
  • Tins - 扭矩 (Nm)10
  • hnom - 最小锚固深度35
  • h1 - 钻孔最小深度40
  • d0 - Ø 钻头6
  • hmin - Min. substrate thickness100
  • L- 长度40
Ø6 x 5015TX3001001.200
  • tfix - 最大夹具厚度15
  • SW-安装关键TX30
  • df - Ø 元件固定9
  • Tins - 扭矩 (Nm)10
  • hnom - 最小锚固深度35
  • h1 - 钻孔最小深度40
  • d0 - Ø 钻头6
  • hmin - Min. substrate thickness100
  • L- 长度50
Ø6 x 605TX300100400
  • tfix - 最大夹具厚度5
  • SW-安装关键TX30
  • df - Ø 元件固定9
  • Tins - 扭矩 (Nm)10
  • hnom - 最小锚固深度55
  • h1 - 钻孔最小深度60
  • d0 - Ø 钻头6
  • hmin - Min. substrate thickness100
  • L- 长度60

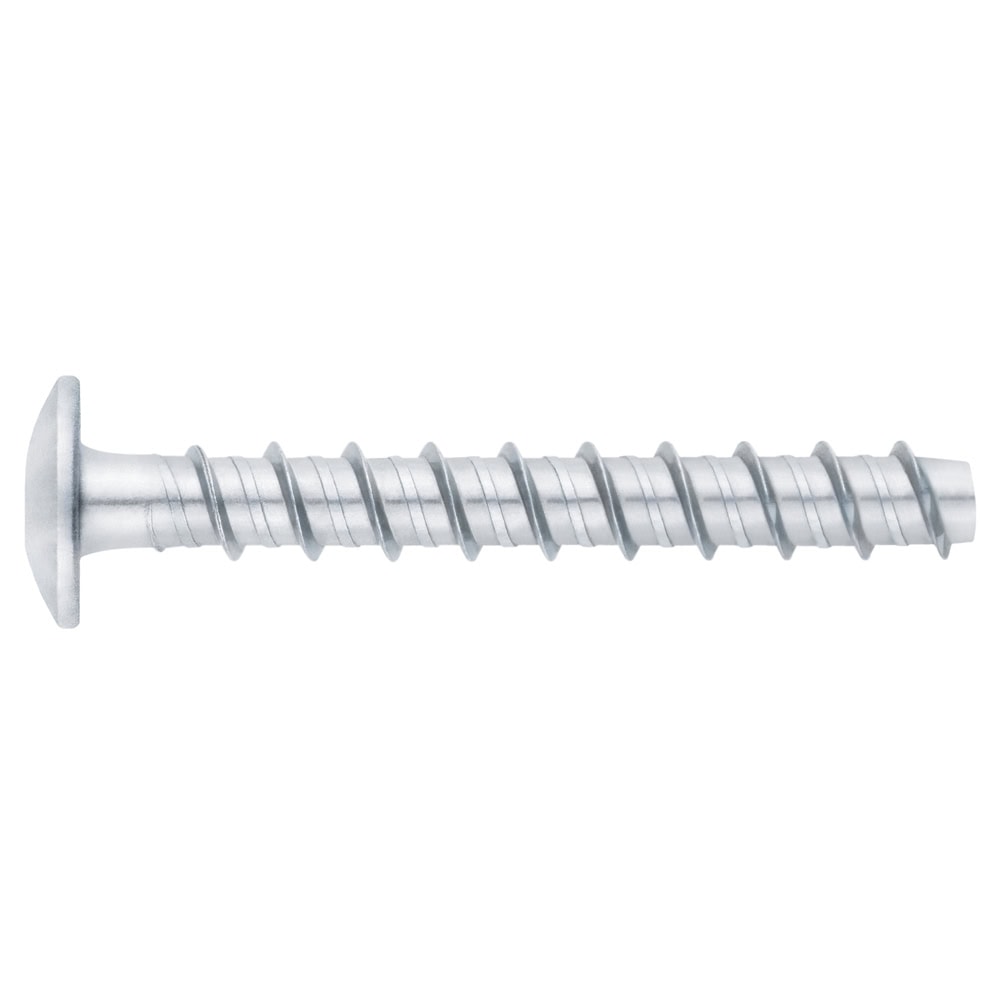

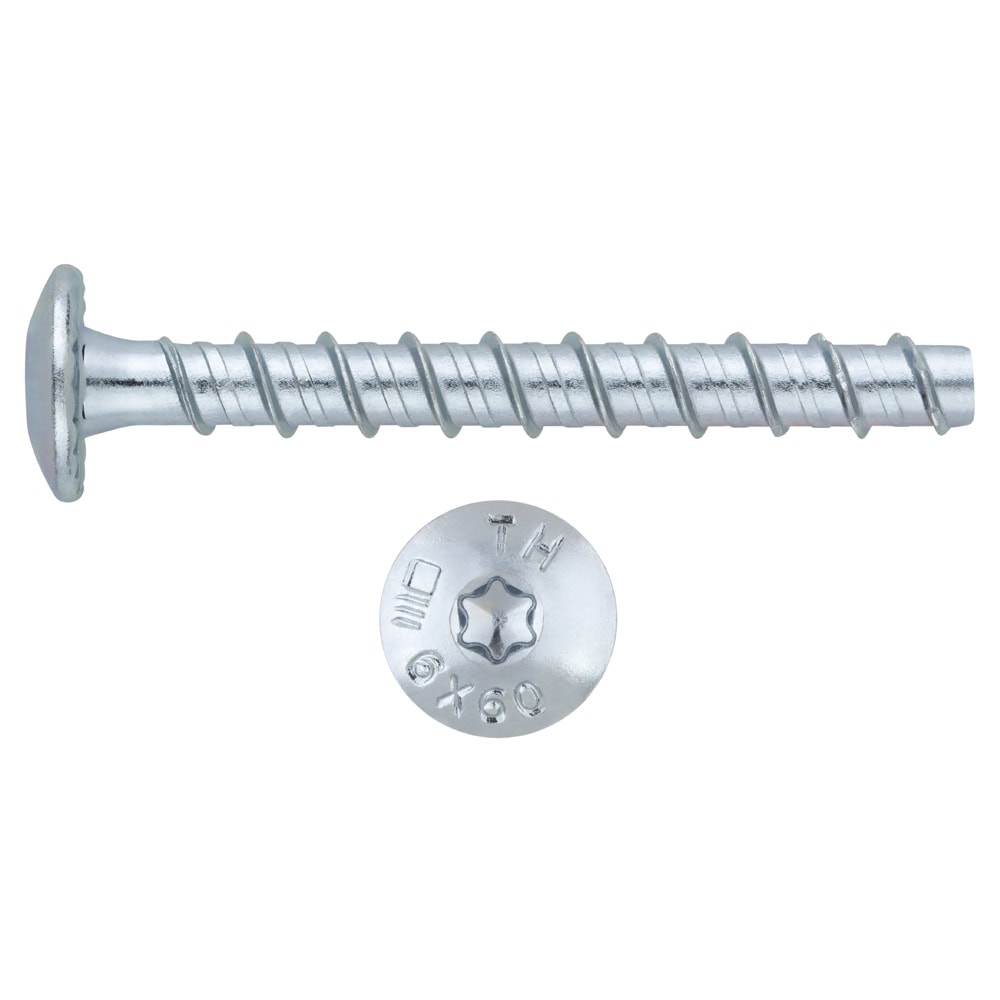

  • [TRUSS-HEAD CONCRETE SCREW] Screw for cracked and non-cracked concrete, with a truss head and TX drive. Direct-fix anchorage, which creates the thread during installation. Its patented double thread is capable of embedding itself in the concrete and ensuring maximum load-bearing capacity. The Truss head provides a larger bearing surface than other types of screws, allowing the load to be distributed more evenly.
  • [HIGH-LOAD ANCHOR] Designed for structural and non-structural fixings in concrete. It can be used to install elements such as balustrades and handrails, shelving and racks, or glazing and windows.
  • [REMOVABLE AND EASY TO INSTALL] It is a fully removable anchor, perfect for use in temporary installations or when the surface needs to be left completely unmarked after removal.
  • [APPROVED] It is approved to the highest quality standards. It holds European approvals ETA 20/0046 (Option 1) and ETA 20/0494; seismic approval C1 (models from Ø6 to Ø18); and fire resistance approval R30-120.
  • [MADE FROM GALVANISED STEEL] The anchor is made from galvanised steel. This is a highly durable material, ensuring the longevity of the installation.
  • Fixing of pipes
  • Air conditioning units ducts
  • Electrical trays or wiring systems
  • Installations in hollow concrete ceilings
  • Installations in hollow-core slab ceilings
