用于中等载荷的防旋转套筒锚固件. 螺旋钩

尺寸痕迹编号钩环开口孔径最小销售单位彩盒件数外箱件数Technical Info.
M8 x 60 Ø10025200

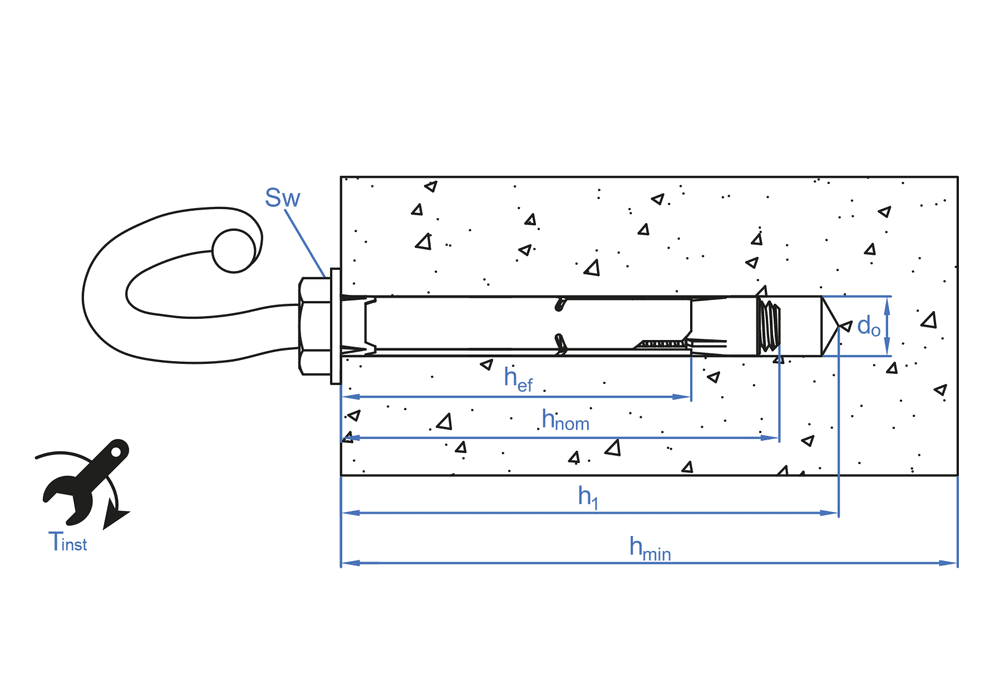

  • tfix - 最大夹具厚度-
  • SW-安装关键13
  • df - Ø 元件固定12
  • Tins - 扭矩 (Nm)20
  • hef - 有效深度45
  • hnom - 最小锚固深度51
  • h1 - 钻孔最小深度60
  • d0 - Ø 钻头10
  • hmin - Min. substrate thickness100
  • L- 长度115
M10 x 70 Ø1201590
  • tfix - 最大夹具厚度-
  • SW-安装关键17
  • df - Ø 元件固定14
  • Tins - 扭矩 (Nm)35
  • hef - 有效深度53
  • hnom - 最小锚固深度70
  • h1 - 钻孔最小深度80
  • d0 - Ø 钻头12
  • hmin - Min. substrate thickness100
  • L- 长度135
  • 【ANTI-TURN FUNCTION】 Anti-turn anchor for medium loads with spiral hook and expansion principle for solid materials. It has several anti-turn elements (cone, sleeve and rubber) that prevent the anchor from turning when installation begins, facilitating installation and ensuring optimal expansion and performance.
  • 【WIDE RANGE OF APPLICATIONS】 Suitable for secure anchoring in static or quasi-static applications such as fixing signs, shelving, panels, porticos, railings, awnings, fence posts, street furniture or seats in cinemas, theatres and stadiums.
  • 【CONCRETE AND OTHER MATERIALS】 Suitable for fixing to solid materials such as concrete, reinforced concrete, stone or solid brick.
  • 【GUARANTEED QUALITY】 Manufactured in zinc-coated steel, a high-quality, resistant material that ensures solid and secure anchoring in indoor or outdoor environments with low humidity.
  • 【EUROPEAN APPROVAL】 Design patented by INDEX A Perfect Fixing and ETA 18/0018 approved for non-structural use in concrete.
  • Marquees
  • Signs
  • Banners
  • Banners
260750
