产品 / 紧固件 / 用于重负荷的内螺纹内迫壁虎 / 带环,A4不锈钢,ETA认证,用于非结构型应用

用于重负荷的内螺纹内迫壁虎. 带环,A4不锈钢,ETA认证,用于非结构型应用

评估与认证

尺寸长度最小销售单位彩盒件数外箱件数Technical Info.
M6 x 25 Ø82501003.200

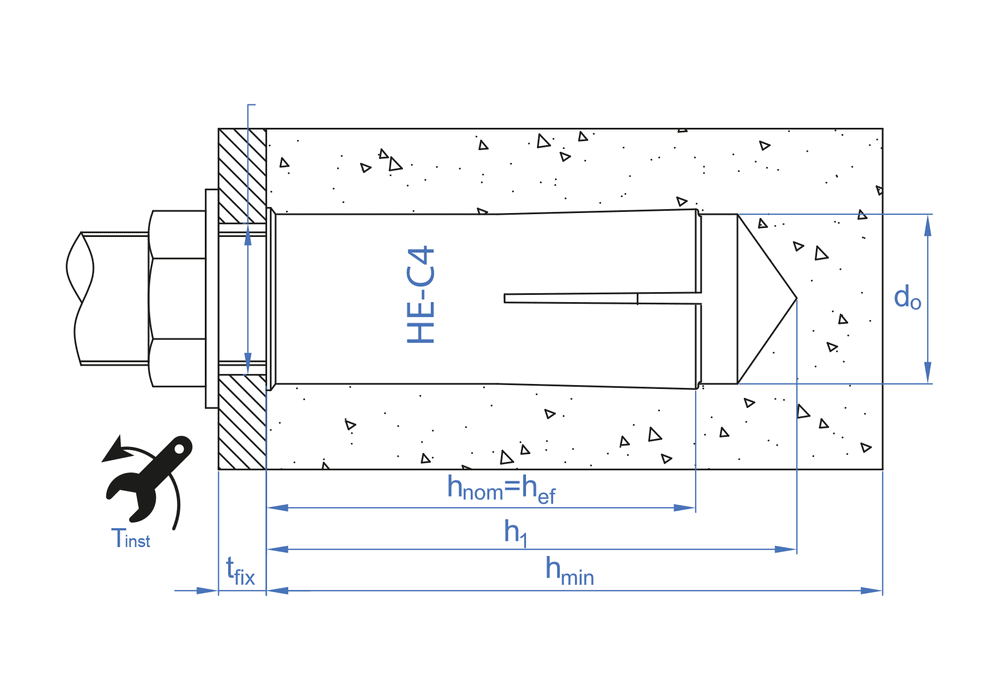

  • df - Ø 元件固定7
  • Tins - 扭矩 (Nm)4
  • hef - 有效深度25
  • hnom - 最小锚固深度25
  • h1 - 钻孔最小深度27
  • d0 - Ø 钻头8
  • hmin - Min. substrate thickness80
  • L- 长度25
M8 x 30 Ø103001001.600
  • df - Ø 元件固定9
  • Tins - 扭矩 (Nm)11
  • hef - 有效深度30
  • hnom - 最小锚固深度30
  • h1 - 钻孔最小深度33
  • d0 - Ø 钻头10
  • hmin - Min. substrate thickness80
  • L- 长度30
M10 x 40 Ø1240050800
  • df - Ø 元件固定12
  • Tins - 扭矩 (Nm)17
  • hef - 有效深度40
  • hnom - 最小锚固深度40
  • h1 - 钻孔最小深度43
  • d0 - Ø 钻头12
  • hmin - Min. substrate thickness80
  • L- 长度40
M12 x 50 Ø1550050400
  • df - Ø 元件固定14
  • Tins - 扭矩 (Nm)38
  • hef - 有效深度50
  • hnom - 最小锚固深度50
  • h1 - 钻孔最小深度54
  • d0 - Ø 钻头15
  • hmin - Min. substrate thickness100
  • L- 长度50

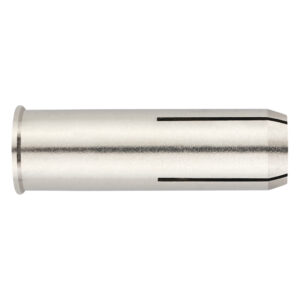

  • [FEMALE ANCHOR WITH COLLAR] Female threaded anchor for securing medium- and high-load elements in concrete. The collar prevents the anchor from penetrating too deeply into the hole in the base material during installation.
  • [APPROVED ANCHOR] Anchor approved to the highest quality standards. It holds European ETA 14/0068 approval, which certifies its performance in non-structural applications in concrete; it bears the CE mark and has fire resistance approval. It also complies with the VdS CEA 4001 standard for sprinkler systems (for models from M8 to M20).
  • [HIGHLY VERSATILE ANCHOR] It can be used for fitting suspended ceilings, sprinkler systems or installing pipework with clamps, amongst other applications.
  • [MADE FROM STAINLESS STEEL] The anchor is made from A4 stainless steel. This is a high-strength material that guarantees the durability of the installation, even in areas where exposure to corrosion is very high.
  • [VARIETY OF SIZES] INDEX A PERFECT FIXING offers this metal anchor in a range of sizes, from which you can choose depending on the type of installation.
  • [FEMALE ANCHOR WITH COLLAR] Female threaded anchor for securing medium- and high-load elements in concrete. The collar prevents the anchor from penetrating too deeply into the hole in the base material during installation.
260939
