产品 / 紧固件 / 镀锌水泥螺栓 / ETA 1级认证,六角头不带螺母

镀锌水泥螺栓. ETA 1级认证,六角头不带螺母

评估与认证

钻头直径 × 长度最大固定厚度 [mm]痕迹编号最小销售单位彩盒件数外箱件数Technical Info.
Ø14 x 80524025150

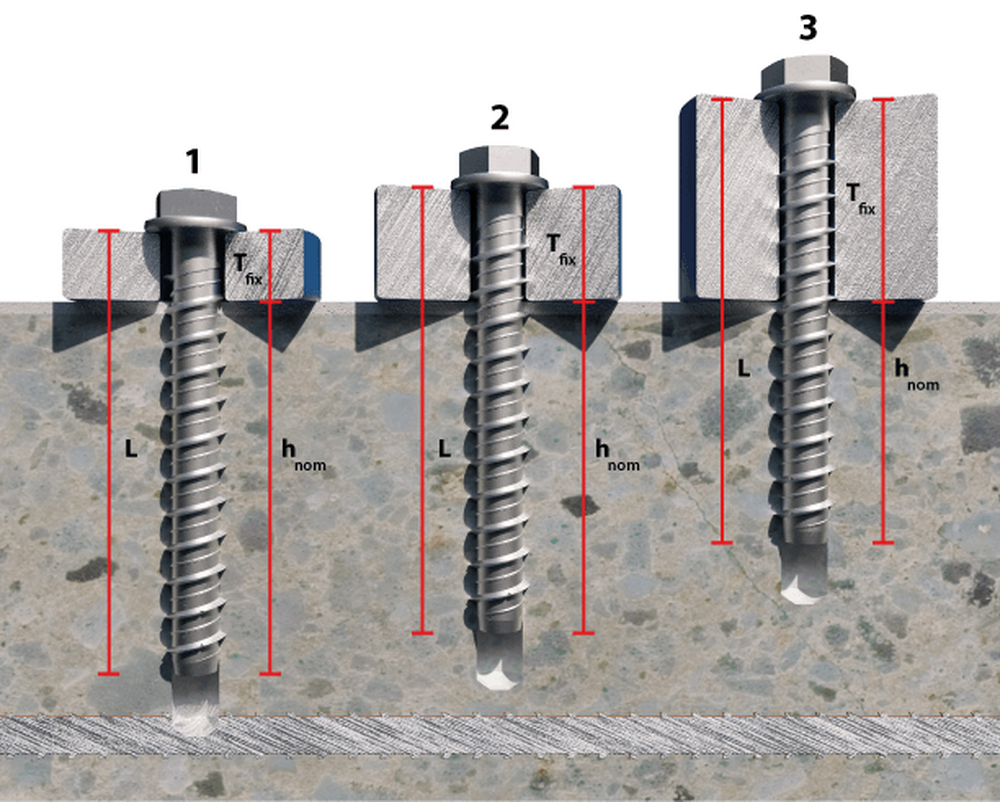

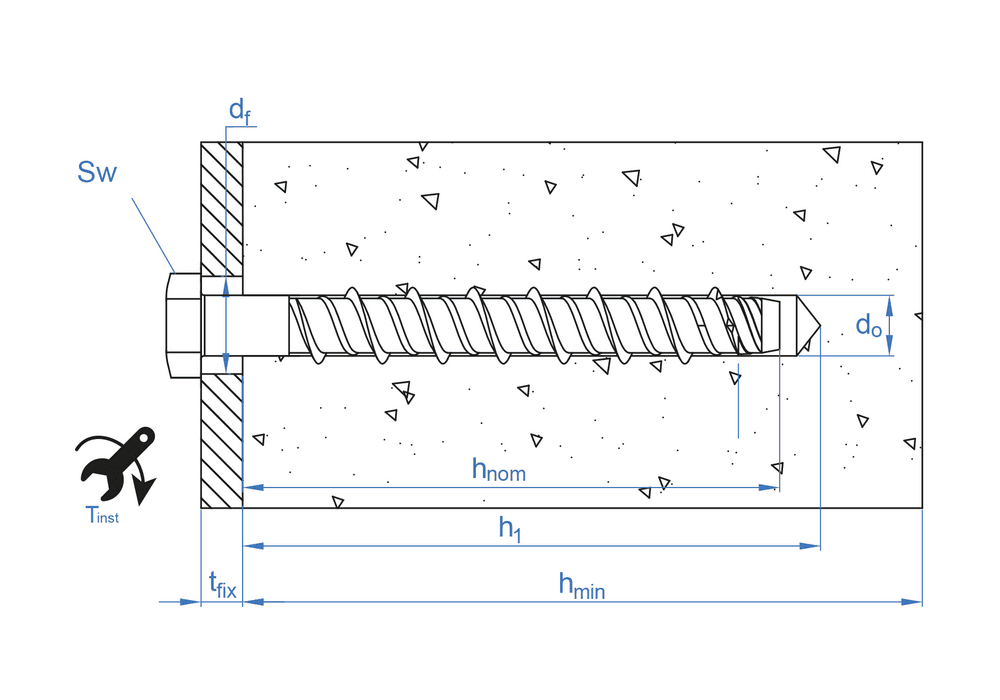

  • tfix - 最大夹具厚度5
  • SW-安装关键24
  • df - Ø 元件固定18
  • Tins - 扭矩 (Nm)70
  • hnom - 最小锚固深度75
  • h1 - 钻孔最小深度90
  • d0 - Ø 钻头14
  • hmin - Min. substrate thickness120
  • L- 长度80

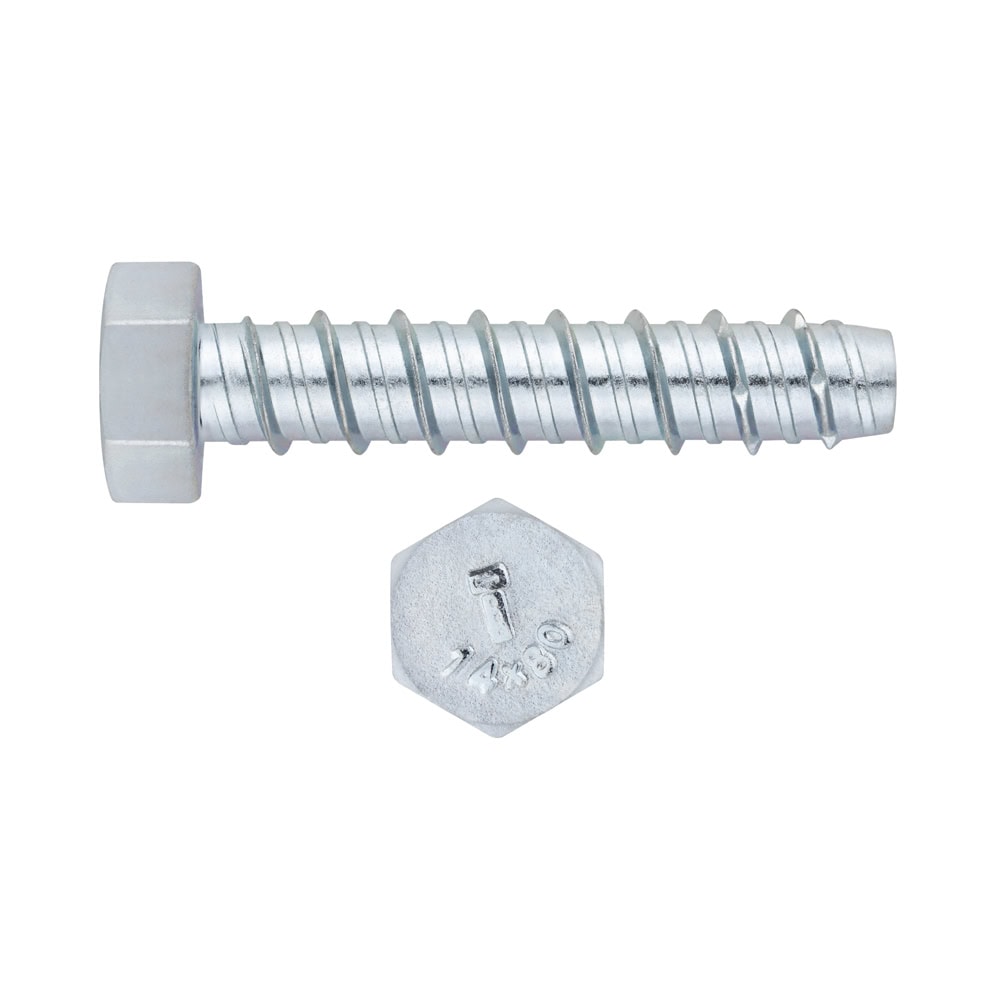

  • [PATENTED DOUBLE THREAD] Hexagonal-head anchor for direct fixing in concrete, designed to provide strong and secure anchors in both cracked and non-cracked concrete. Its design features a patented double thread, designed to embed deeply into the concrete and ensure maximum load-bearing capacity.
  • [HIGH LOADS] This is the ideal anchor for structural fixings in concrete, such as seating stands, handrails, glazing, windows, shop windows, machinery and all types of high-load fixings where a concrete-specific fixing is required.

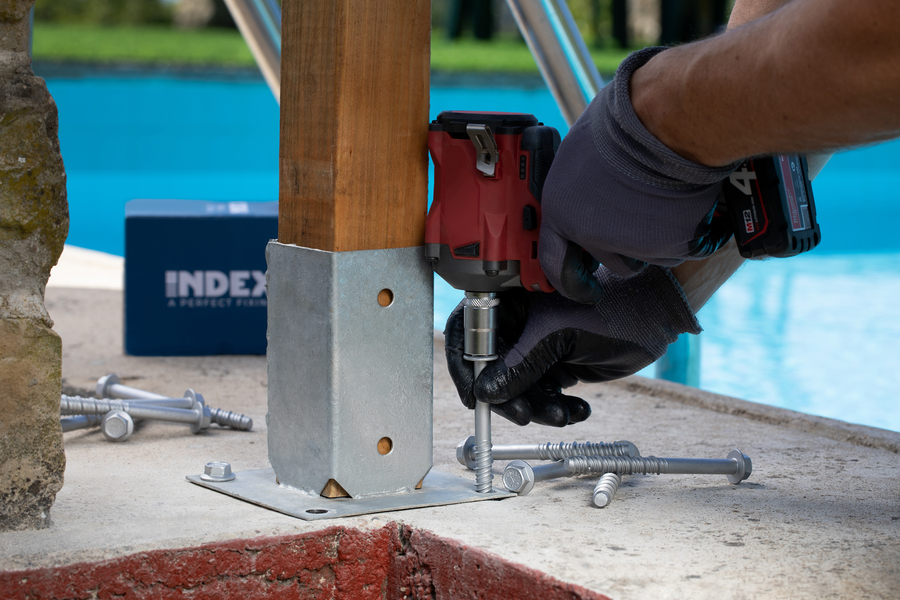

  • [REMOVABLE AND EASY TO INSTALL] It is a fully removable anchor, ideal for temporary installations or where the surface needs to be left completely clean after removal. It is also easy to install as it requires only a drill and an impact driver; no torque wrenches are needed.
  • [GALVANISED STEEL] It is made from stamped carbon steel, a highly resistant material with a zinc surface coating that prevents corrosion and rust. The tip has undergone a hardening process to ensure greater hardness, durability and ease of installation.
  • [APPROVED] It holds ETA approval for use in concrete, as well as seismic and fire resistance approvals, and VdS CEA 4001 certification, which confirms its suitability for the installation of sprinkler systems.
  • Structural applications
  • Temporary awnings or signage
  • Stadium seating
  • Wood to concrete structures
  • Railings and fencing
  • Shelving and racks
  • Structural beams and pillars
260501
