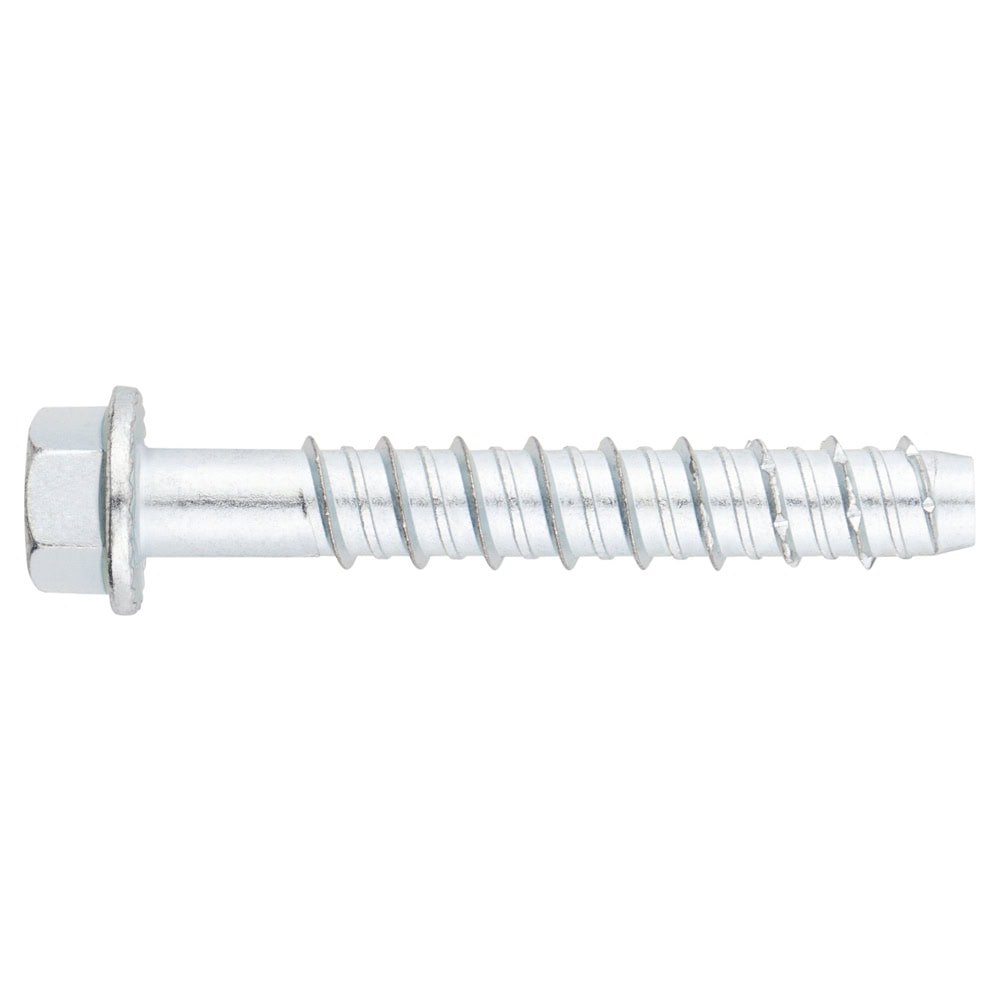

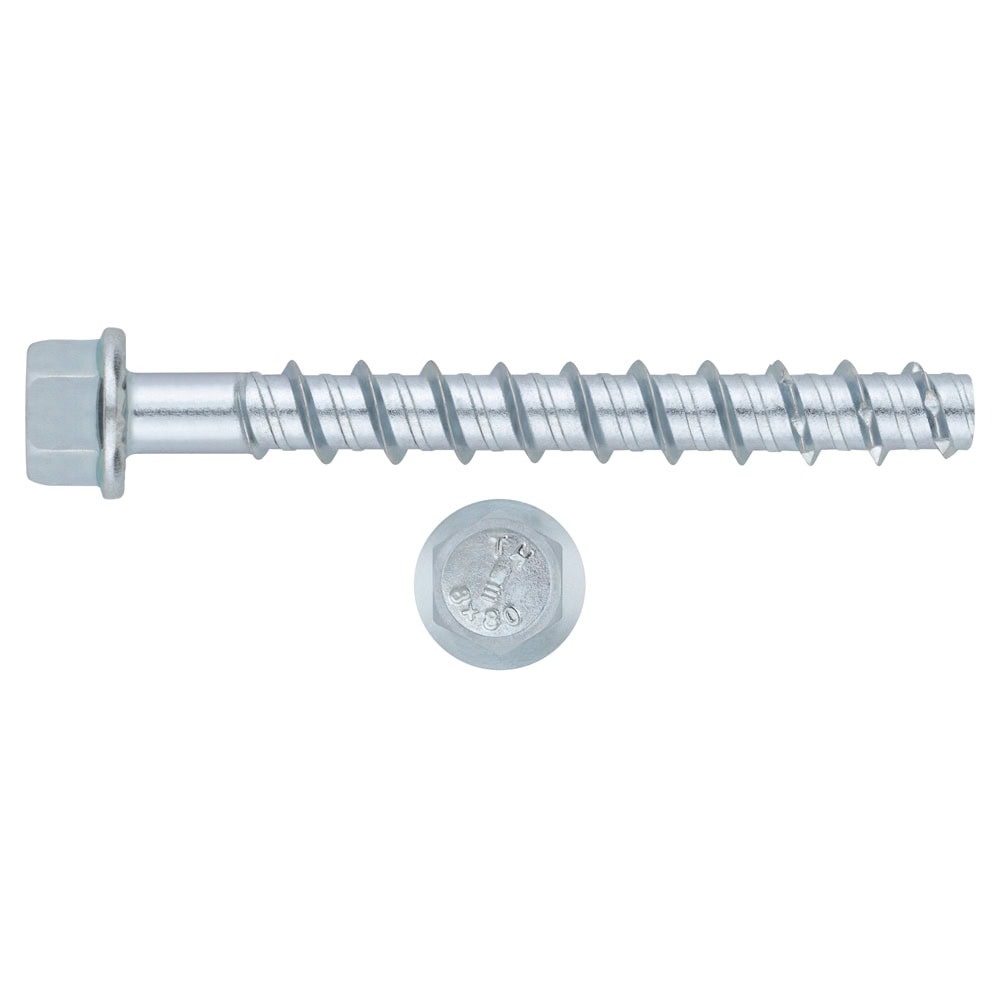

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Hexagon head
ASSESSMENTS AND CERTIFICATES
DRILL Ø X LENGTH
Nº RECESS
THICKNESS MAX.FIXTURE (mm)
Pcs Box
Pcs Masterbox
Technical Info.
Ø5 x 40
8
5
100
2.400
tfix - Max. fixture thickness5
SW - Installation key8
df - Ø Element to fix8
Tins - Torque (Nm)8
hnom - Min. anchor depth35
h1 - Drill hole depth min.45
d0 - Ø Drill5
hmin - Min. substrate thickness80
L - Lenght40
Ø5 x 50
8
5
100
1.600
tfix - Max. fixture thickness5
SW - Installation key8
df - Ø Element to fix8
Tins - Torque (Nm)8
hnom - Min. anchor depth45
h1 - Drill hole depth min.55
d0 - Ø Drill5
hmin - Min. substrate thickness80
L - Lenght50
Ø5 x 60
8
15
100
1.600
tfix - Max. fixture thickness15
SW - Installation key8
df - Ø Element to fix8
Tins - Torque (Nm)8
hnom - Min. anchor depth45
h1 - Drill hole depth min.55
d0 - Ø Drill5
hmin - Min. substrate thickness80
L - Lenght60
Ø5 x 80
8
35
50
800
tfix - Max. fixture thickness35
SW - Installation key8
df - Ø Element to fix8
Tins - Torque (Nm)8
hnom - Min. anchor depth45
h1 - Drill hole depth min.55
d0 - Ø Drill5
hmin - Min. substrate thickness80
L - Lenght80
Ø5 x 100
8
55
50
800
tfix - Max. fixture thickness55
SW - Installation key8
df - Ø Element to fix8
Tins - Torque (Nm)8
hnom - Min. anchor depth45
h1 - Drill hole depth min.55
d0 - Ø Drill5
hmin - Min. substrate thickness80
L - Lenght100
Ø6 x 35
10
--
100
1.600
tfix - Max. fixture thickness--
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth35
h1 - Drill hole depth min.45
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght35
Ø6 x 40
10
5
100
1.600
tfix - Max. fixture thickness5
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth35
h1 - Drill hole depth min.45
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght40
Ø6 x 45
10
10
100
1.200
tfix - Max. fixture thickness10
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth35
h1 - Drill hole depth min.45
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght45
Ø6 x 50
10
15
100
1.200
tfix - Max. fixture thickness15
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth35
h1 - Drill hole depth min.45
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght50
Ø6 x 60
10
5
100
1.200
tfix - Max. fixture thickness5
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth55
h1 - Drill hole depth min.65
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght60
Ø6 x 70
10
15
50
600
tfix - Max. fixture thickness15
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth55
h1 - Drill hole depth min.65
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght70
Ø6 x 80
10
25
50
800
tfix - Max. fixture thickness25
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth55
h1 - Drill hole depth min.65
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght80
Ø6 x 100
10
45
25
400
tfix - Max. fixture thickness45
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth55
h1 - Drill hole depth min.65
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght100
Ø6 x 120
10
65
25
400
tfix - Max. fixture thickness65
SW - Installation key10
df - Ø Element to fix9
Tins - Torque (Nm)10
hnom - Min. anchor depth55
h1 - Drill hole depth min.65
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght120
Ø8 x 55
13
5
50
600
tfix - Max. fixture thickness5
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth50
h1 - Drill hole depth min.60
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght55
Ø8 x 60
13
10
50
600
tfix - Max. fixture thickness10
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth50
h1 - Drill hole depth min.60
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght60
Ø8 x 70
13
5
50
200
tfix - Max. fixture thickness5
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth65
h1 - Drill hole depth min.75
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght70
Ø8 x 75
13
10
25
400
tfix - Max. fixture thickness10
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth65
h1 - Drill hole depth min.75
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght75
Ø8 x 80
13
15
25
400
tfix - Max. fixture thickness15
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth65
h1 - Drill hole depth min.75
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght80
Ø8 x 90
13
25
25
400
tfix - Max. fixture thickness25
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth65
h1 - Drill hole depth min.75
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght90
Ø8 x 100
13
35
25
400
tfix - Max. fixture thickness35
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth65
h1 - Drill hole depth min.75
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght100
Ø8 x 110
13
45
25
400
tfix - Max. fixture thickness45
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth65
h1 - Drill hole depth min.75
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght110
Ø8 x 120
13
55
25
400
tfix - Max. fixture thickness55
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth65
h1 - Drill hole depth min.75
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght120
Ø8 x 140
13
75
25
300
tfix - Max. fixture thickness75
SW - Installation key13
df - Ø Element to fix12
Tins - Torque (Nm)20
hnom - Min. anchor depth65
h1 - Drill hole depth min.75
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght140
Ø10 x 60
15
5
50
200
tfix - Max. fixture thickness5
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth55
h1 - Drill hole depth min.65
d0 - Ø Drill10
hmin - Min. substrate thickness100
L - Lenght60
Ø10 x 70
15
15
50
200
tfix - Max. fixture thickness15
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth55
h1 - Drill hole depth min.65
d0 - Ø Drill10
hmin - Min. substrate thickness100
L - Lenght70
Ø10 x 80
15
25
50
300
tfix - Max. fixture thickness25
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth75
h1 - Drill hole depth min.85
d0 - Ø Drill10
hmin - Min. substrate thickness120
L - Lenght80
Ø10 x 90
15
5
25
300
tfix - Max. fixture thickness5
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth85
h1 - Drill hole depth min.95
d0 - Ø Drill10
hmin - Min. substrate thickness135
L - Lenght90
Ø10 x 100
15
15
25
300
tfix - Max. fixture thickness15
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth85
h1 - Drill hole depth min.95
d0 - Ø Drill10
hmin - Min. substrate thickness135
L - Lenght100
Ø10 x 120
15
35
25
200
tfix - Max. fixture thickness35
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth85
h1 - Drill hole depth min.95
d0 - Ø Drill10
hmin - Min. substrate thickness135
L - Lenght120
Ø10 x 140
15
55
25
100
tfix - Max. fixture thickness55
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth85
h1 - Drill hole depth min.95
d0 - Ø Drill10
hmin - Min. substrate thickness135
L - Lenght140
Ø10 x 160
15
75
25
100
tfix - Max. fixture thickness75
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth85
h1 - Drill hole depth min.95
d0 - Ø Drill10
hmin - Min. substrate thickness135
L - Lenght160
Ø10 x 180
15
95
25
100
tfix - Max. fixture thickness95
SW - Installation key15
df - Ø Element to fix14
Tins - Torque (Nm)30
hnom - Min. anchor depth85
h1 - Drill hole depth min.95
d0 - Ø Drill10
hmin - Min. substrate thickness135
L - Lenght180
Ø12 x 80
18
5
25
100
tfix - Max. fixture thickness5
SW - Installation key18
df - Ø Element to fix16
Tins - Torque (Nm)50
hnom - Min. anchor depth75
h1 - Drill hole depth min.90
d0 - Ø Drill12
hmin - Min. substrate thickness120
L - Lenght80
Ø12 x 90
18
15
25
100
tfix - Max. fixture thickness15
SW - Installation key18
df - Ø Element to fix16
Tins - Torque (Nm)50
hnom - Min. anchor depth75
h1 - Drill hole depth min.90
d0 - Ø Drill12
hmin - Min. substrate thickness120
L - Lenght90
Ø12 x 100
18
25
25
100
tfix - Max. fixture thickness25
SW - Installation key18
df - Ø Element to fix16
Tins - Torque (Nm)50
hnom - Min. anchor depth75
h1 - Drill hole depth min.90
d0 - Ø Drill12
hmin - Min. substrate thickness120
L - Lenght100
Ø12 x 110
18
5
25
100
tfix - Max. fixture thickness5
SW - Installation key18
df - Ø Element to fix16
Tins - Torque (Nm)50
hnom - Min. anchor depth105
h1 - Drill hole depth min.120
d0 - Ø Drill12
hmin - Min. substrate thickness170
L - Lenght110
Ø12 x 130
18
25
25
150
tfix - Max. fixture thickness25
SW - Installation key18
df - Ø Element to fix16
Tins - Torque (Nm)50
hnom - Min. anchor depth105
h1 - Drill hole depth min.120
d0 - Ø Drill12
hmin - Min. substrate thickness170
L - Lenght130
Ø12 x 150
18
45
25
100
tfix - Max. fixture thickness45
SW - Installation key18
df - Ø Element to fix16
Tins - Torque (Nm)50
hnom - Min. anchor depth105
h1 - Drill hole depth min.120
d0 - Ø Drill12
hmin - Min. substrate thickness170
L - Lenght150
Ø14 x 80
21
5
25
150
tfix - Max. fixture thickness5
SW - Installation key21
df - Ø Element to fix18
Tins - Torque (Nm)70
hnom - Min. anchor depth75
h1 - Drill hole depth min.90
d0 - Ø Drill14
hmin - Min. substrate thickness120
L - Lenght80
Ø14 x 100
21
25
25
150
tfix - Max. fixture thickness25
SW - Installation key21
df - Ø Element to fix18
Tins - Torque (Nm)70
hnom - Min. anchor depth75
h1 - Drill hole depth min.90
d0 - Ø Drill14
hmin - Min. substrate thickness120
L - Lenght100
Ø14 x 110
21
35
25
100
tfix - Max. fixture thickness35
SW - Installation key21
df - Ø Element to fix18
Tins - Torque (Nm)70
hnom - Min. anchor depth75
h1 - Drill hole depth min.90
d0 - Ø Drill14
hmin - Min. substrate thickness120
L - Lenght110
Ø14 x 120
21
5
25
100
tfix - Max. fixture thickness5
SW - Installation key21
df - Ø Element to fix18
Tins - Torque (Nm)70
hnom - Min. anchor depth115
h1 - Drill hole depth min.130
d0 - Ø Drill14
hmin - Min. substrate thickness185
L - Lenght120
Ø14 x 130
21
15
25
100
tfix - Max. fixture thickness15
SW - Installation key21
df - Ø Element to fix18
Tins - Torque (Nm)70
hnom - Min. anchor depth115
h1 - Drill hole depth min.130
d0 - Ø Drill14
hmin - Min. substrate thickness185
L - Lenght130
Ø14 x 140
21
25
25
100
tfix - Max. fixture thickness25
SW - Installation key21
df - Ø Element to fix18
Tins - Torque (Nm)70
hnom - Min. anchor depth115
h1 - Drill hole depth min.130
d0 - Ø Drill14
hmin - Min. substrate thickness185
L - Lenght140
Ø14 x 160
21
45
25
50
tfix - Max. fixture thickness45
SW - Installation key21
df - Ø Element to fix18
Tins - Torque (Nm)70
hnom - Min. anchor depth115
h1 - Drill hole depth min.130
d0 - Ø Drill14
hmin - Min. substrate thickness185
L - Lenght160
Ø16 x 100
20
25
100
tfix - Max. fixture thickness20
SW - Installation key24
df - Ø Element to fix20
Tins - Torque (Nm)80
hnom - Min. anchor depth80
h1 - Drill hole depth min.100
d0 - Ø Drill16
hmin - Min. substrate thickness115
L - Lenght100
Ø16 x 150
30
25
75
tfix - Max. fixture thickness30
SW - Installation key24
df - Ø Element to fix20
Tins - Torque (Nm)80
hnom - Min. anchor depth120
h1 - Drill hole depth min.140
d0 - Ø Drill16
hmin - Min. substrate thickness185
L - Lenght150
Ø18 x 100
24
10
20
80
tfix - Max. fixture thickness10
SW - Installation key24
df - Ø Element to fix22
Tins - Torque (Nm)90
hnom - Min. anchor depth90
h1 - Drill hole depth min.110
d0 - Ø Drill18
hmin - Min. substrate thickness140
L - Lenght100
Ø18 x 130
24
40
20
40
tfix - Max. fixture thickness40
SW - Installation key24
df - Ø Element to fix22
Tins - Torque (Nm)90
hnom - Min. anchor depth90
h1 - Drill hole depth min.110
d0 - Ø Drill18
hmin - Min. substrate thickness140
L - Lenght130
Ø18 x 160
24
20
15
30
tfix - Max. fixture thickness20
SW - Installation key24
df - Ø Element to fix22
Tins - Torque (Nm)90
hnom - Min. anchor depth140
h1 - Drill hole depth min.160
d0 - Ø Drill18
hmin - Min. substrate thickness225
L - Lenght160
Ø18 x 180
24
40
15
30
tfix - Max. fixture thickness40
SW - Installation key24
df - Ø Element to fix22
Tins - Torque (Nm)90
hnom - Min. anchor depth140
h1 - Drill hole depth min.160
d0 - Ø Drill18
hmin - Min. substrate thickness225
L - Lenght180
Ø18 x 200
24
60
10
20
tfix - Max. fixture thickness60
SW - Installation key24
df - Ø Element to fix22
Tins - Torque (Nm)90
hnom - Min. anchor depth140
h1 - Drill hole depth min.160
d0 - Ø Drill18
hmin - Min. substrate thickness225
L - Lenght200
Suitable as auxiliary and temporary anchors, not fixed, for work where access and positioning with ropes is required, both in vertical work and in canyoning and climbing equipment, rescue, etc…
It is advisable to use those with diameters of 8 mm and above. Due to its versatility in different types of support and installation and the advantage of its removal when the work has been completed. In this way it has a lower environmental impact, nothing is left in the rock, and nothing is left in the natural environment.
Recommendations according to UNE EN:959 2021.
Nuestro departamento de ingeniería pone a tu disposición formaciones específicas y personalizadas en los diferentes temas relacionados con el mundo de la fijación: fijaciones metálicas o químicas, sistemas de instalación, normativas, realización de cálculos…
visitas a obra
La relación con nuestros clientes no finaliza con la venta de nuestros productos. Desde INDEX® entendemos que en muchas ocasiones es necesario un acompañamiento en obra donde nuestra experiencia es la mejor aliada para que todo encaje a la perfección. Nuestros ingenieros y técnicos apoyarán a los responsables de cada proyecto en la planificación y selección de la mejor solución con el fin de ahorrar tiempo y costes de la manera más efectiva.
SERVICIOS DE INGENIERÍA Y REALIZACIÓN DE CÁLCULOS
Desde INDEX® queremos ofrecer el servicio más integral a nuestros clientes. Además de proporcionarles las mejores soluciones en fijaciones y anclajes, nuestro equipo de ingenieros especializados, asesora técnicamente a todos nuestros clientes. Además, disponemos de potentes herramientas de software para realizar los cálculos necesarios con total exactitud.
Privacy Overview
This website uses cookies so that we can provide you with the best user experience possible. Cookie information is stored in your browser and performs functions such as recognising you when you return to our website and helping our team to understand which sections of the website you find most interesting and useful.
Strictly Necessary Cookies
Strictly Necessary Cookie should be enabled at all times so that we can save your preferences for cookie settings.
If you disable this cookie, we will not be able to save your preferences. This means that every time you visit this website you will need to enable or disable cookies again.
3rd Party Cookies
This website uses Google Analytics to collect anonymous information such as the number of visitors to the site, and the most popular pages.
Keeping this cookie enabled helps us to improve our website.
Please enable Strictly Necessary Cookies first so that we can save your preferences!
