用于重型固定件的翼形钢锚. A4不锈钢膨胀套

尺寸胶囊长度最小销售单位彩盒件数外箱件数Technical Info.
M6 x 40 Ø10400501.200

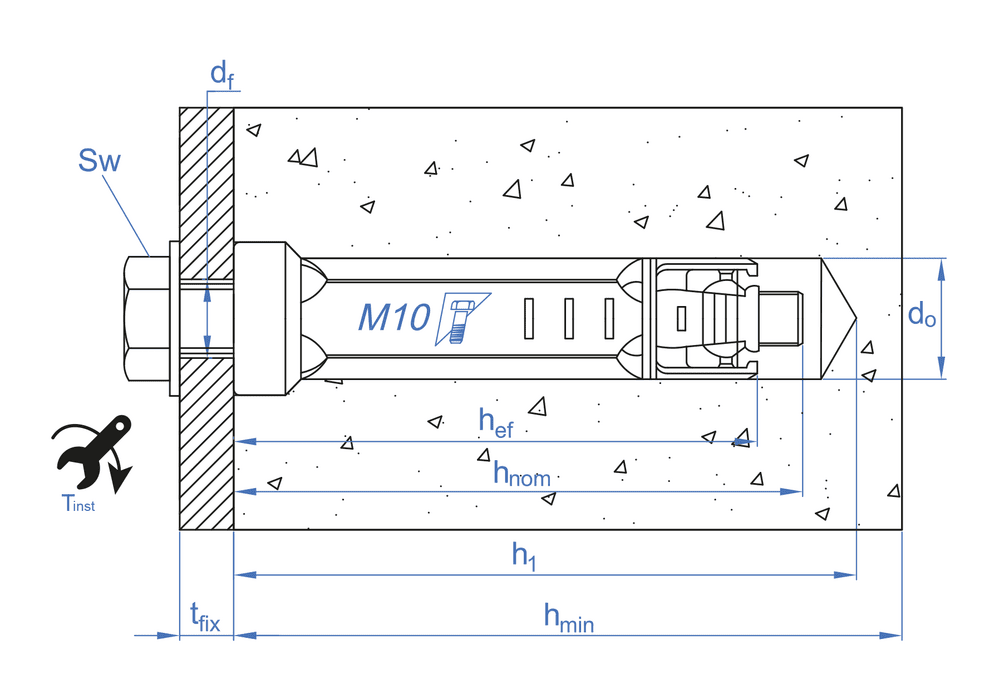

  • tfix - 最大夹具厚度-
  • df - Ø 元件固定7
  • Tins - 扭矩 (Nm)10
  • hef - 有效深度40
  • hnom - 最小锚固深度40
  • h1 - 钻孔最小深度45
  • d0 - Ø 钻头10
  • hmin - Min. substrate thickness100
  • L- 长度40
M8 x 50 Ø1450050600
  • tfix - 最大夹具厚度-
  • df - Ø 元件固定9
  • Tins - 扭矩 (Nm)25
  • hef - 有效深度50
  • hnom - 最小锚固深度50
  • h1 - 钻孔最小深度60
  • d0 - Ø 钻头14
  • hmin - Min. substrate thickness100
  • L- 长度50
M10 x 60 Ø1660025300
  • tfix - 最大夹具厚度-
  • df - Ø 元件固定12
  • Tins - 扭矩 (Nm)50
  • hef - 有效深度60
  • hnom - 最小锚固深度60
  • h1 - 钻孔最小深度70
  • d0 - Ø 钻头16
  • hmin - Min. substrate thickness120
  • L- 长度60
M12 x 80 Ø2080010120
  • tfix - 最大夹具厚度-
  • df - Ø 元件固定14
  • Tins - 扭矩 (Nm)85
  • hef - 有效深度80
  • hnom - 最小锚固深度80
  • h1 - 钻孔最小深度90
  • d0 - Ø 钻头20
  • hmin - Min. substrate thickness160
  • L- 长度80
  • [HIGH-LOAD ANCHOR] Metal expansion plug, designed to secure items subjected to high loads in solid materials such as concrete, solid brick or stone.
  • [FIN-TYPE ANCHOR] It operates by expansion and is installed using a torque wrench with a controlled torque setting, ensuring strong and durable fixings in solid substrates.
  • [HIGHLY VERSATILE] It can be used to install items such as signs, shelving and handrails, or for the assembly of street furniture.
  • [MADE FROM A4 STAINLESS STEEL] Manufactured from A4 stainless steel, a material highly resistant to corrosion, allowing it to be used in particularly demanding environments.
  • [AVAILABLE IN VARIOUS SIZES] INDEX A PERFECT FIXING offers this anchor in various sizes for different installations on solid materials.
  • Air-conditioning units
  • Antennas
  • Street furniture
  • Railings
  • Balcony railings
  • Road railings
  • Wooden railings
  • Beach railings
  • Marquees
260768
