Products / Fixing / Anti-spin sleeve anchor for medium loads / Hexagonal head screw 8.8 for reduced thicknesses

Anti-spin sleeve anchor for medium loads. Hexagonal head screw 8.8 for reduced thicknesses

SizeNº RECESSAPERTURE HOOKEYE BOLT ØMin. Order Qty.Pcs. BoxPcs. MasterboxTechnical Info.
M6 x 40 Ø802001.200

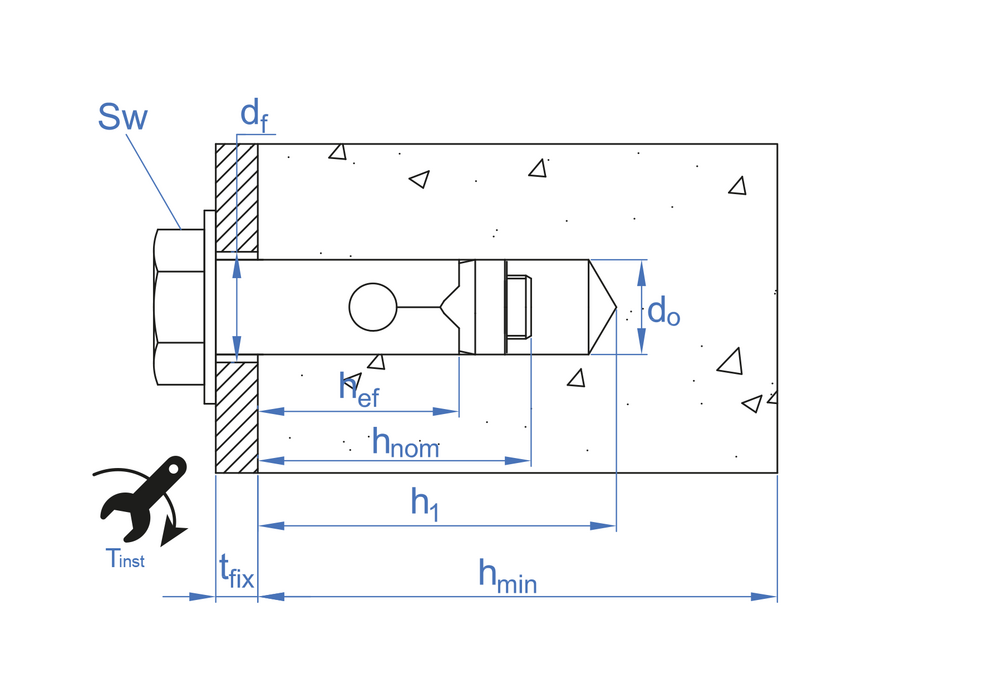

  • tfix - Max. fixture thickness5
  • SW - Installation key10
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hef - Effective depth25
  • hnom - Min. anchor depth32
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness70
  • L - Lenght40
M8 x 40 Ø100100600
  • tfix - Max. fixture thickness5
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hef - Effective depth25
  • hnom - Min. anchor depth37
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness70
  • L - Lenght40

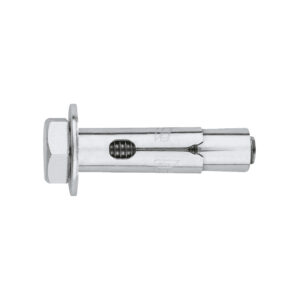

  • [ANTI-TURN FUNCTION] Anti-turn anchor for medium loads with 8.8 hexagonal screw and expansion principle in solid materials. It has several anti-turn elements (cone, sleeve and rubber) that prevent the anchor from turning when installation begins, facilitating installation and ensuring optimal expansion and performance.

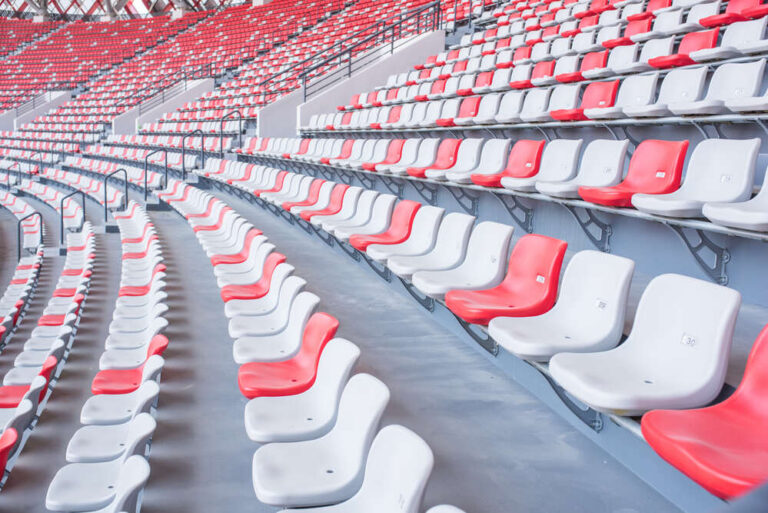

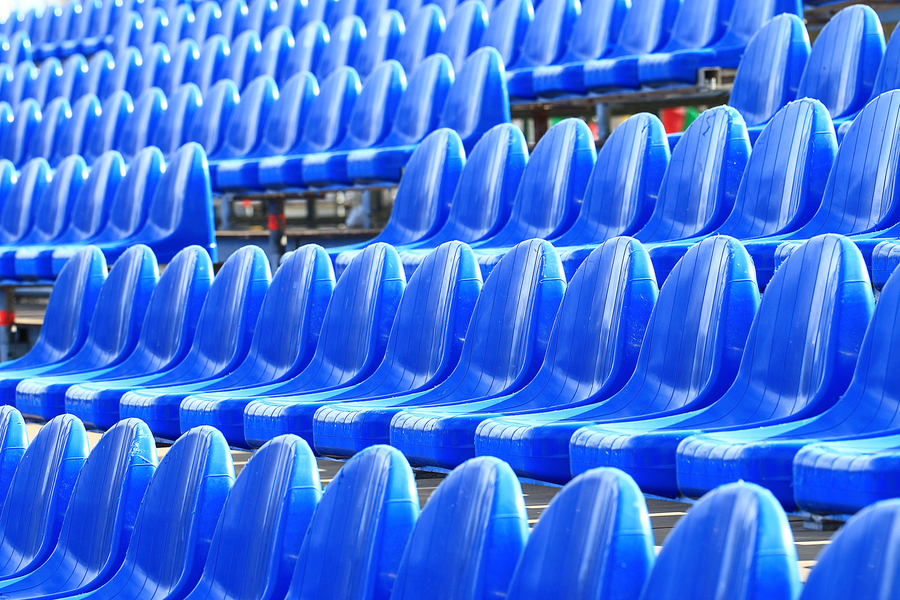

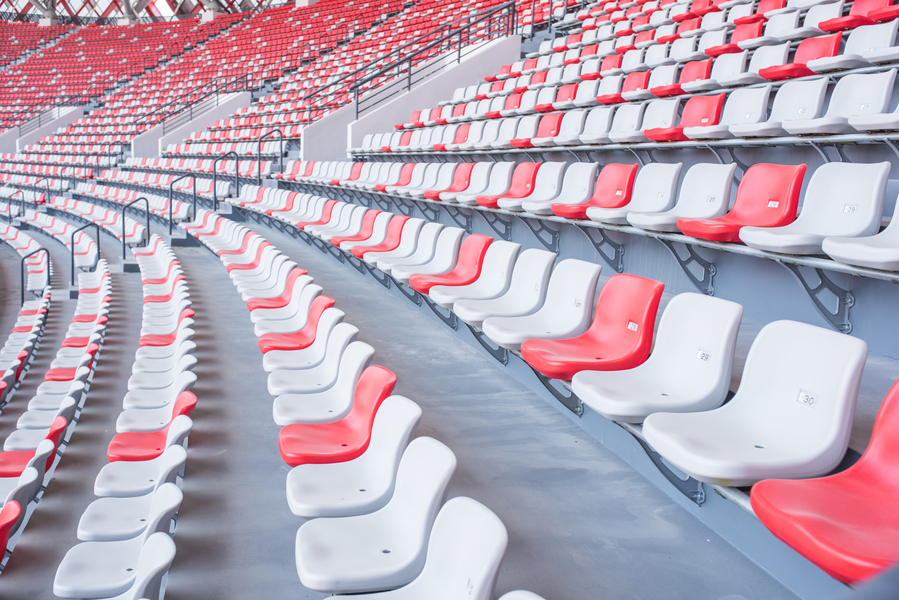

  • [VERY VARIED APPLICATIONS] Suitable for secure anchoring in static or quasi-static applications such as fixing signs, shelves, panels, porticos, railings, awnings, fence posts, street furniture or seats in cinemas, theatres and stadiums.
  • [CONCRETE AND OTHER MATERIALS] Suitable for fastening to solid materials such as concrete, reinforced concrete, stone or solid brick.
  • [GUARANTEED QUALITY] Made of zinc-coated carbon steel, a high-quality, durable material that ensures solid, secure anchoring in indoor or outdoor environments with low humidity.
  • [REDUCED THICKNESSES] Its design is perfect for applications in base materials with reduced thicknesses.
  • Air conditioning units
  • Antennas
  • Street furniture
  • Railings
  • Balcony railings
  • Balcony railings
  • Road railings
  • Wooden railings
  • Tents
260651
