Products / Fixing / Through bolt anchor for heavy loads in cracked & uncracked concrete / Opt.1 ETA Assessed. Zinc-plated shaft. ATLANTIS C3-L clip

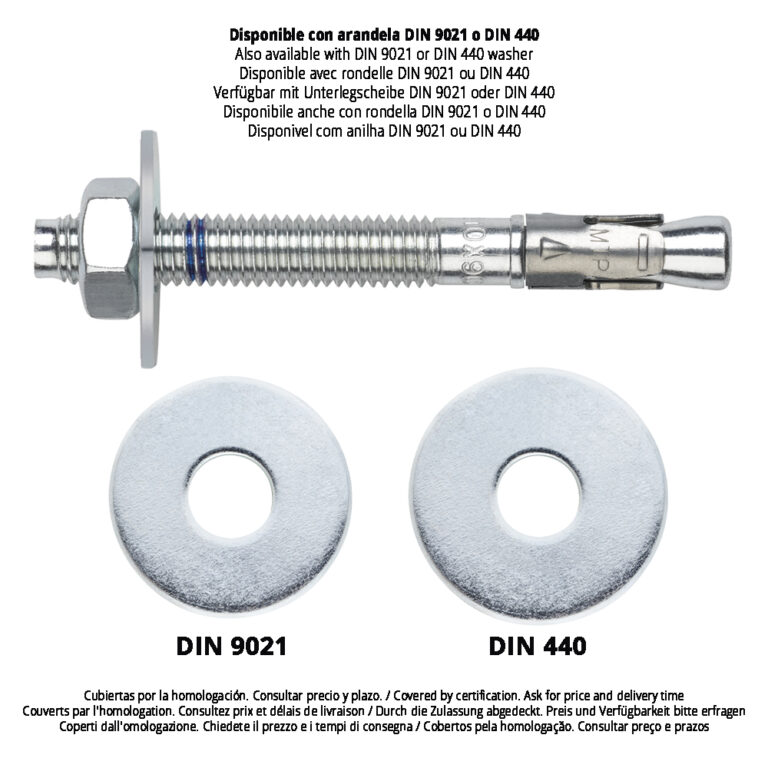

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. Zinc-plated shaft. ATLANTIS C3-L clip

ASSESSMENTS AND CERTIFICATES

Size	THICKNESS MAX.FIXTURE [mm]	MIN. SUBSTRATE THICKNESS	AXIS LETTER (LENGTH)	Min. Order Qty.	Pcs. Box	Pcs. Masterbox
M8 x 50 Ø8	2	80	A	0	100	800

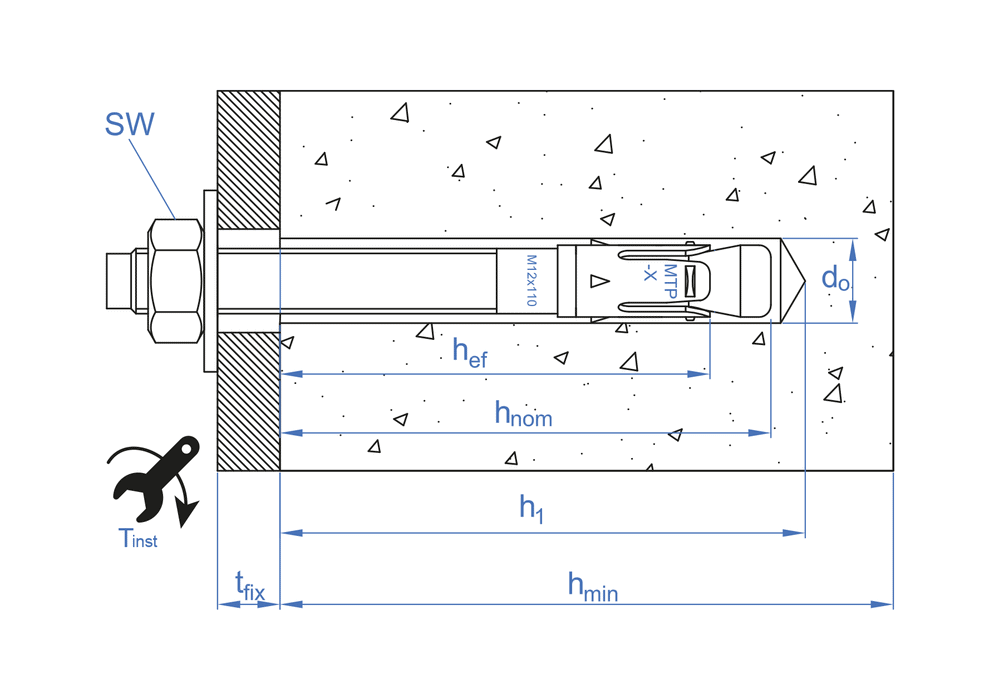

	t_fix- Max. fixture thickness2 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth30 h_nom - Min. anchor depth37 h₁ - Drill hole depth min.40 d₀ - Ø Drill8 h_min- Min. substrate thickness80 L - Lenght50
M8 x 75 Ø8	9	80	C	0	100	600
	t_fix- Max. fixture thickness9 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness80 L - Lenght75
M8 x 80 Ø8	14	80	D	0	100	600
	t_fix- Max. fixture thickness14 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness80 L - Lenght80
M8 x 95 Ø8	29	80	E	0	100	600
	t_fix- Max. fixture thickness29 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness80 L - Lenght95
M8 x 115 Ø8	49	80	G	0	100	400
	t_fix- Max. fixture thickness49 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)15 h_ef - Effective depth48 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness80 L - Lenght115
M10 x 90 Ø10	10	90	E	0	100	400
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness90 L - Lenght90
M10 x 105 Ø10	25	90	F	0	50	300
	t_fix- Max. fixture thickness25 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness90 L - Lenght105
M10 x 115 Ø10	35	90	G	0	50	200
	t_fix- Max. fixture thickness35 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness90 L - Lenght115
M10 x 135 Ø10	55	90	H	0	50	200
	t_fix- Max. fixture thickness55 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness90 L - Lenght135
M10 x 165 Ø10	85	90	K	0	50	200
	t_fix- Max. fixture thickness85 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness90 L - Lenght165
M10 x 185 Ø10	105	90	L	0	50	150
	t_fix- Max. fixture thickness105 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)40 h_ef - Effective depth60 h_nom - Min. anchor depth68 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness90 L - Lenght185
M12 x 80 Ø12	4	100	D	0	50	300
	t_fix- Max. fixture thickness4 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth50 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill12 h_min- Min. substrate thickness100 L - Lenght80
M12 x 100 Ø12	4	105	E	0	50	200
	t_fix- Max. fixture thickness4 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght100
M12 x 110 Ø12	14	105	F	0	50	200
	t_fix- Max. fixture thickness14 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght110
M12 x 120 Ø12	24	105	G	0	50	200
	t_fix- Max. fixture thickness24 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght120
M12 x 130 Ø12	34	105	H	0	50	200
	t_fix- Max. fixture thickness34 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght130
M12 x 150 Ø12	54	105	I	0	50	100
	t_fix- Max. fixture thickness54 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght150
M12 x 180 Ø12	84	105	L	0	50	150
	t_fix- Max. fixture thickness84 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght180
M12 x 200 Ø12	104	105	M	0	50	150
	t_fix- Max. fixture thickness104 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth70 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght200
M12 x 220 Ø12	124	105	O	0	25	50
	t_fix- Max. fixture thickness124 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght220
M12 x 255 Ø12	159	105	R	0	25	50
	t_fix- Max. fixture thickness159 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness105 L - Lenght255
M16 x 145 Ø16	28	130	I	0	25	100
	t_fix- Max. fixture thickness28 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness130 L - Lenght145
M16 x 175 Ø16	58	130	K	0	25	50
	t_fix- Max. fixture thickness58 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness130 L - Lenght175
M16 x 220 Ø16	103	130	O	0	25	50
	t_fix- Max. fixture thickness103 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness130 L - Lenght220
M16 x 250 Ø16	133	130	Q	0	25	50
	t_fix- Max. fixture thickness133 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)100 h_ef - Effective depth85 h_nom - Min. anchor depth97 h₁ - Drill hole depth min.105 d₀ - Ø Drill16 h_min- Min. substrate thickness130 L - Lenght250
M20 x 170 Ø20	32	150	K	0	20	40
	t_fix- Max. fixture thickness32 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness150 L - Lenght170
M20 x 200 Ø20	62	150	M	0	20	40
	t_fix- Max. fixture thickness62 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)200 h_ef - Effective depth100 h_nom - Min. anchor depth114 h₁ - Drill hole depth min.125 d₀ - Ø Drill20 h_min- Min. substrate thickness150 L - Lenght200

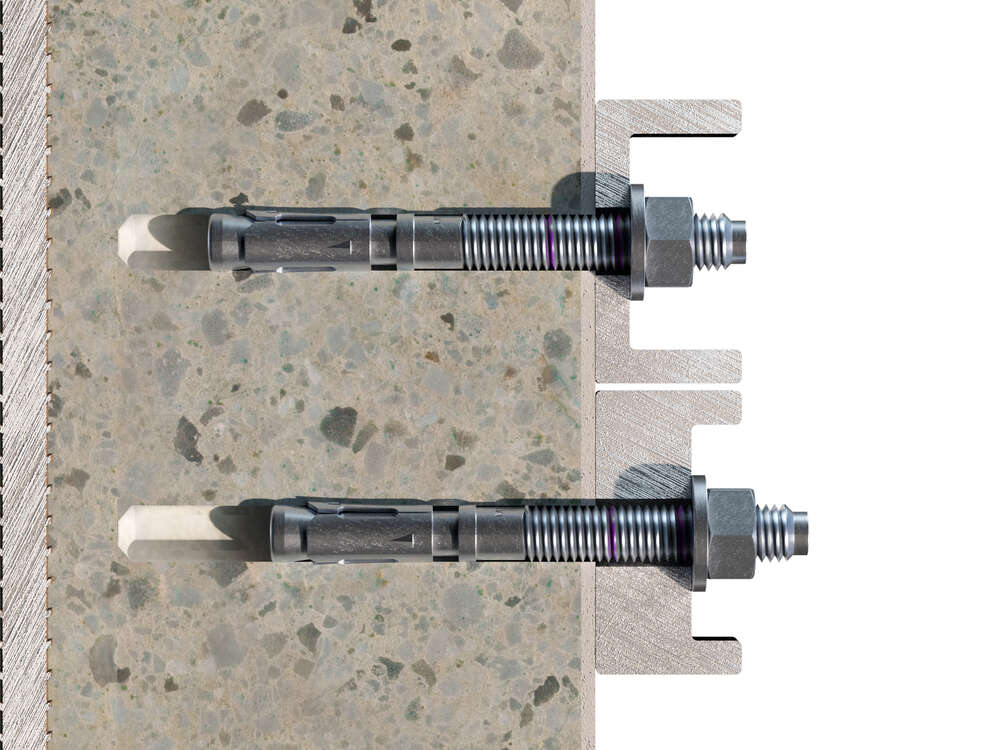

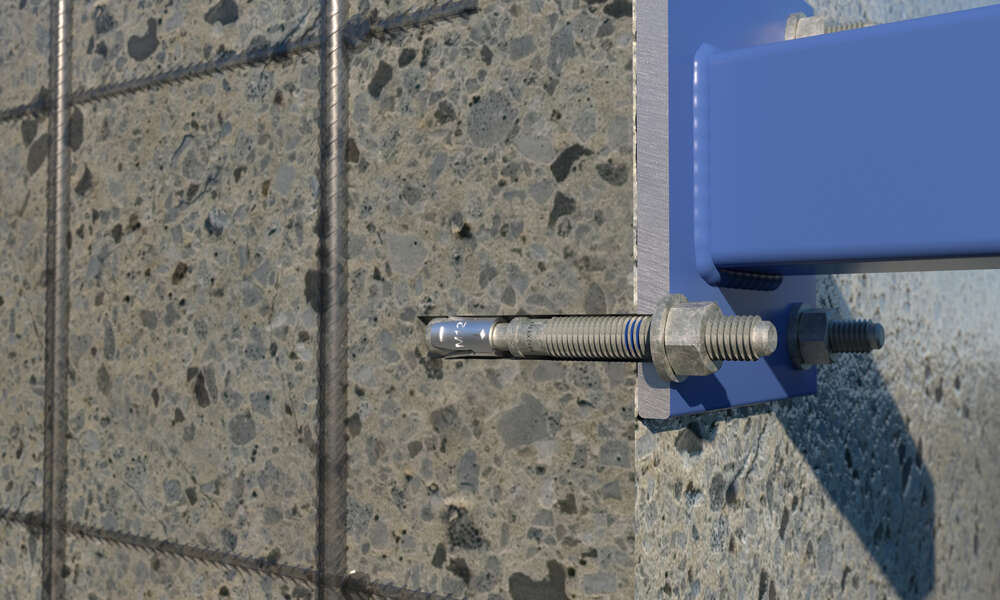

[HIGH-LOAD ANCHOR] Male anchor for securing high-load elements in materials such as cracked and non-cracked concrete. It allows for the secure fastening of structural and non-structural elements with maximum reliability.
[CERTIFIED ANCHOR] Anchor bolt certified to the highest quality standards. It holds European certification ETA 12/0397 (Option 1), which guarantees its performance in both cracked and non-cracked concrete; CE marked; with seismic approval C1 (for models M8 to M20) & C2 (only for models M10, M12, and M20); and with fire resistance approval R30-R120

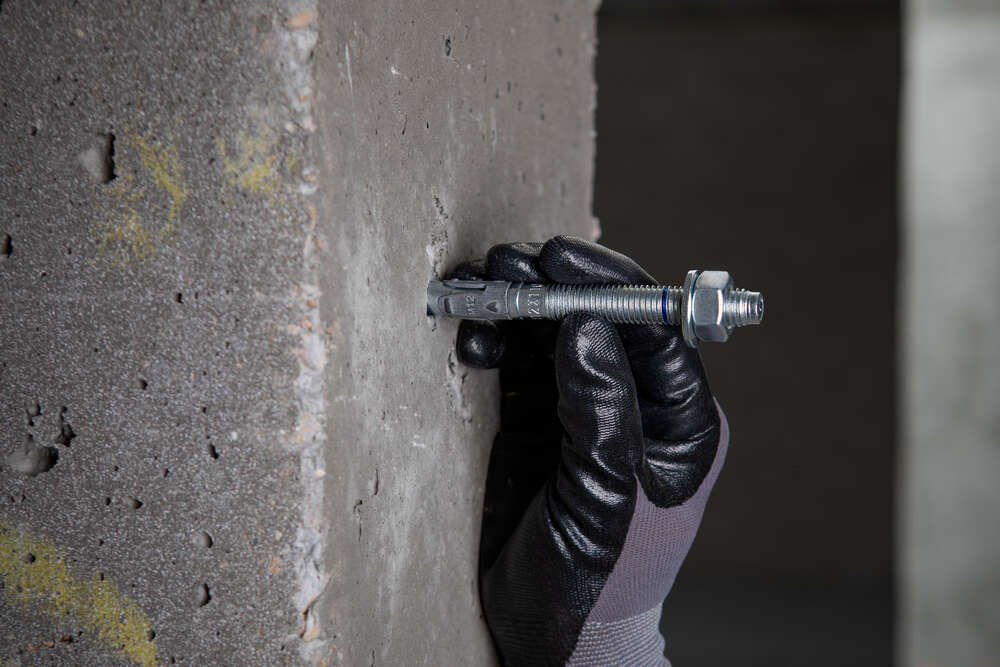

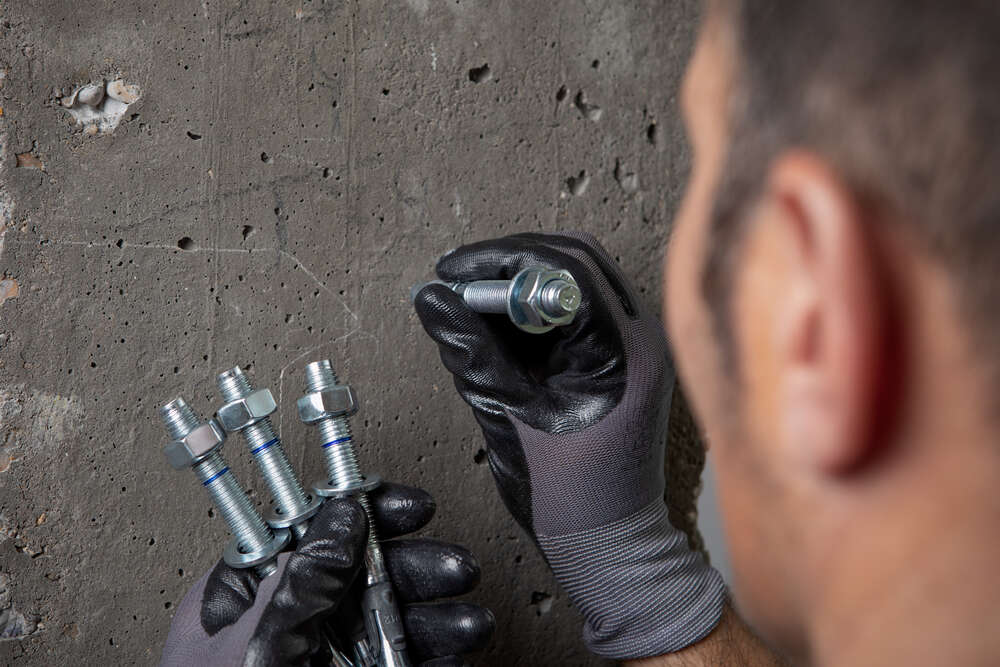

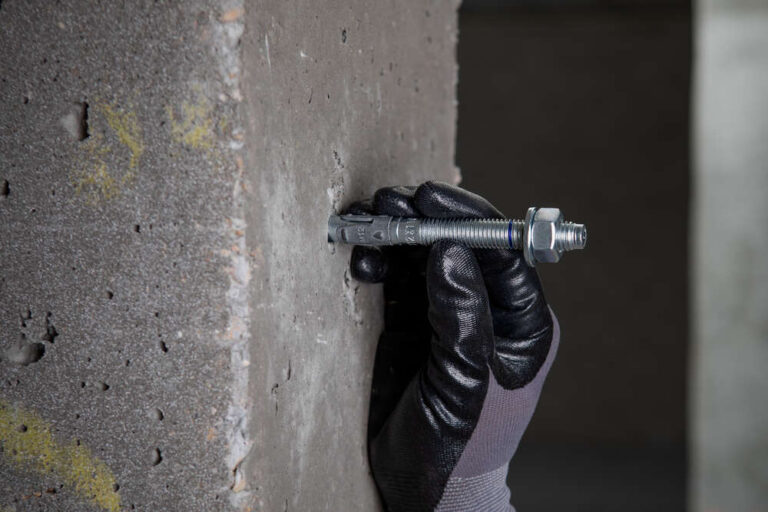

[EASY INSTALLATION] Torque-controlled expansion anchor. It can be easily installed using a torque wrench. The clip design facilitates expansion. It features depth marks to ensure proper installation.
[HIGHLY VERSATILE ANCHOR BOLT] It can be used in the installation of structures such as overhead power lines, elevators, bridges, street furniture, and safety barriers, among others.
[GALVANIZED STEEL SHAFT AND STEEL CLIP WITH ATLANTIS C3-L COATING] The anchor shaft is made of galvanized steel, and the steel clip features an ATLANTIS C3-L coating, a material that is highly resistant to corrosion.

Fixing of shelves
Steel structures
Protections
Street furniture
Machinery
Wooden structures
Antennae
Balcony railings
Road railings
Wooden railings
Beach railings
Ceiling lights
False ceilings
Ceilings

260236

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Hexagon head

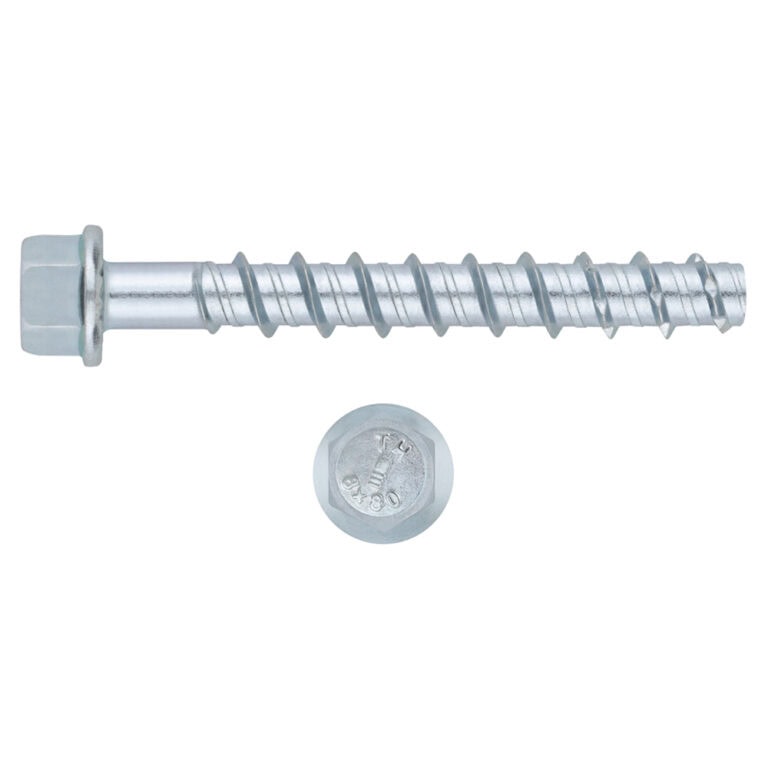

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Hexagon head
