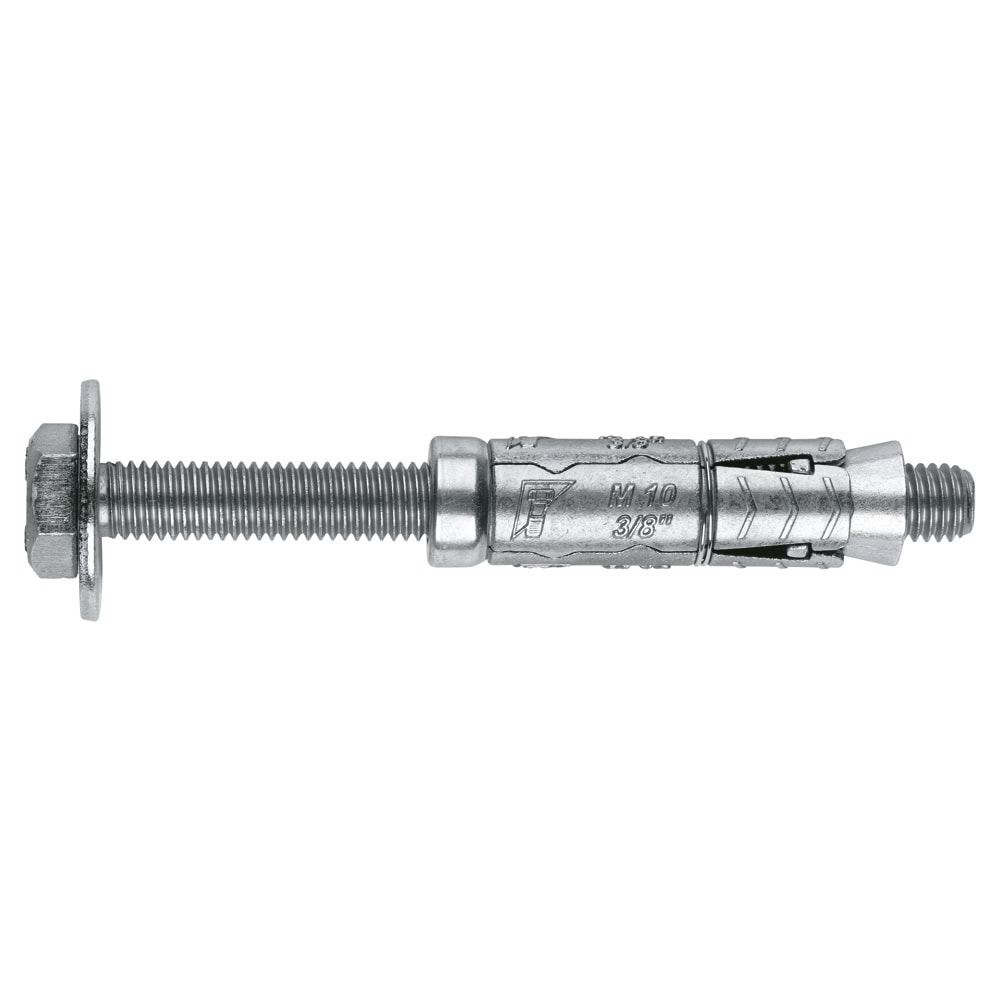

Zamak anchor for medium-heavy loads in hollow and solid elements. Long loose bolt

SizeSCREW SIZEMin. Order Qty.Pcs. BoxPcs. MasterboxTechnical Info.
M6 x 60 Ø12600100600
  • tfix - Max. fixture thickness10
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth41
  • hnom - Min. anchor depth48
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght60
M6 x 80 Ø12800100600
  • tfix - Max. fixture thickness30
  • SW - Installation key10
  • df - Ø Element to fix7
  • Tins - Torque (Nm)7
  • hef - Effective depth41
  • hnom - Min. anchor depth48
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght80
M8 x 90 Ø14900100400
  • tfix - Max. fixture thickness35
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)15
  • hef - Effective depth43
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness100
  • L - Lenght90
M8 x 100 Ø141000100300
  • tfix - Max. fixture thickness45
  • SW - Installation key13
  • df - Ø Element to fix9
  • Tins - Torque (Nm)15
  • hef - Effective depth43
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness100
  • L - Lenght100
M10 x 70 Ø1670050200
  • tfix - Max. fixture thickness10
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)30
  • hef - Effective depth51
  • hnom - Min. anchor depth58
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness102
  • L - Lenght70
M10 x 140 Ø16140050150
  • tfix - Max. fixture thickness80
  • SW - Installation key17
  • df - Ø Element to fix12
  • Tins - Torque (Nm)30
  • hef - Effective depth51
  • hnom - Min. anchor depth58
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness102
  • L - Lenght140
M12 x 90 Ø2090025100
  • tfix - Max. fixture thickness15
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)50
  • hef - Effective depth61
  • hnom - Min. anchor depth72
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness122
  • L - Lenght90
M12 x 120 Ø2012002550
  • tfix - Max. fixture thickness45
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)50
  • hef - Effective depth61
  • hnom - Min. anchor depth72
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness122
  • L - Lenght120
M12 x 140 Ø20140025100
  • tfix - Max. fixture thickness65
  • SW - Installation key19
  • df - Ø Element to fix14
  • Tins - Torque (Nm)50
  • hef - Effective depth61
  • hnom - Min. anchor depth72
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness122
  • L - Lenght140
  • Air conditioning units
  • Roof anchoring
  • Trellis anchoring
  • Aerials
  • Street furniture
  • Railings
  • Balcony railings
  • Balcony railings
  • Road railings
  • Wooden railings
  • Beach railings
260806
