Anti-spin shield anchor for heavy-duty loads. Eye bolt

SizeNº RECESSAPERTURE HOOKEYE BOLT ØMin. Order Qty.Pcs. BoxPcs. MasterboxTechnical Info.
M6 x 45 Ø12100100400

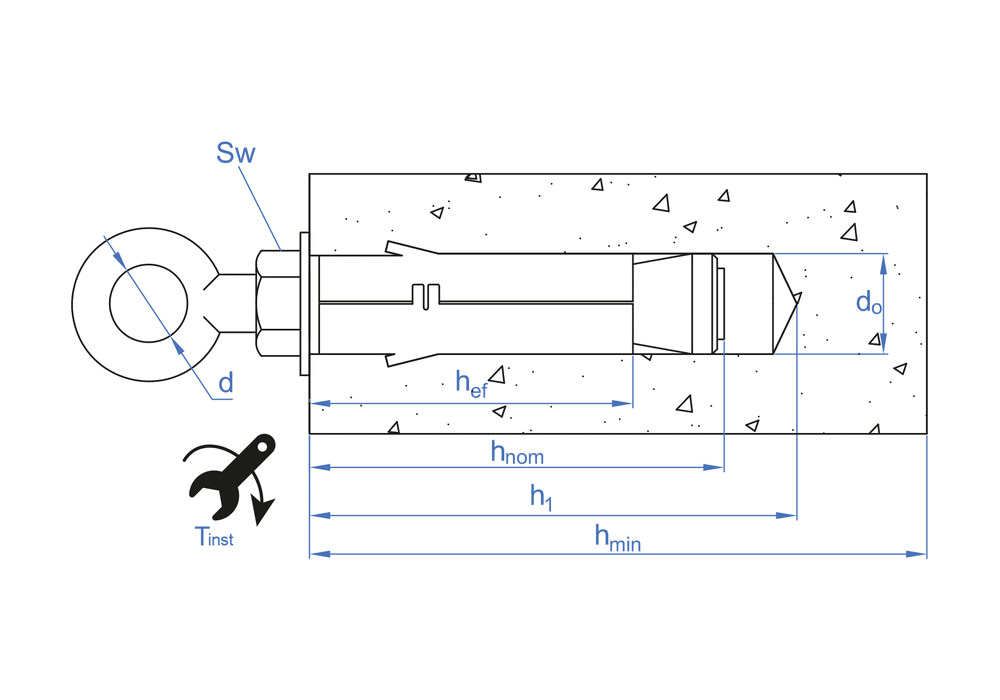

  • tfix - Max. fixture thickness-
  • SW - Installation key10
  • Tins - Torque (Nm)10
  • hef - Effective depth30
  • hnom - Min. anchor depth45
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght45
M8 x 55 Ø1412050300
  • tfix - Max. fixture thickness-
  • SW - Installation key13
  • Tins - Torque (Nm)20
  • hef - Effective depth35
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness100
  • L - Lenght55
M10 x 65 Ø1614050200
  • tfix - Max. fixture thickness-
  • SW - Installation key17
  • Tins - Torque (Nm)40
  • hef - Effective depth45
  • hnom - Min. anchor depth60
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness100
  • L - Lenght65
M12 x 75 Ø201702575
  • tfix - Max. fixture thickness-
  • SW - Installation key19
  • Tins - Torque (Nm)65
  • hef - Effective depth55
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.90
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness110
  • L - Lenght75
M16 x 90 Ø242301030
  • tfix - Max. fixture thickness-
  • SW - Installation key24
  • Tins - Torque (Nm)150
  • hef - Effective depth70
  • hnom - Min. anchor depth100
  • h1 - Drill hole depth min.105
  • d0 - Ø Drill24
  • hmin - Min. substrate thickness140
  • L - Lenght90
