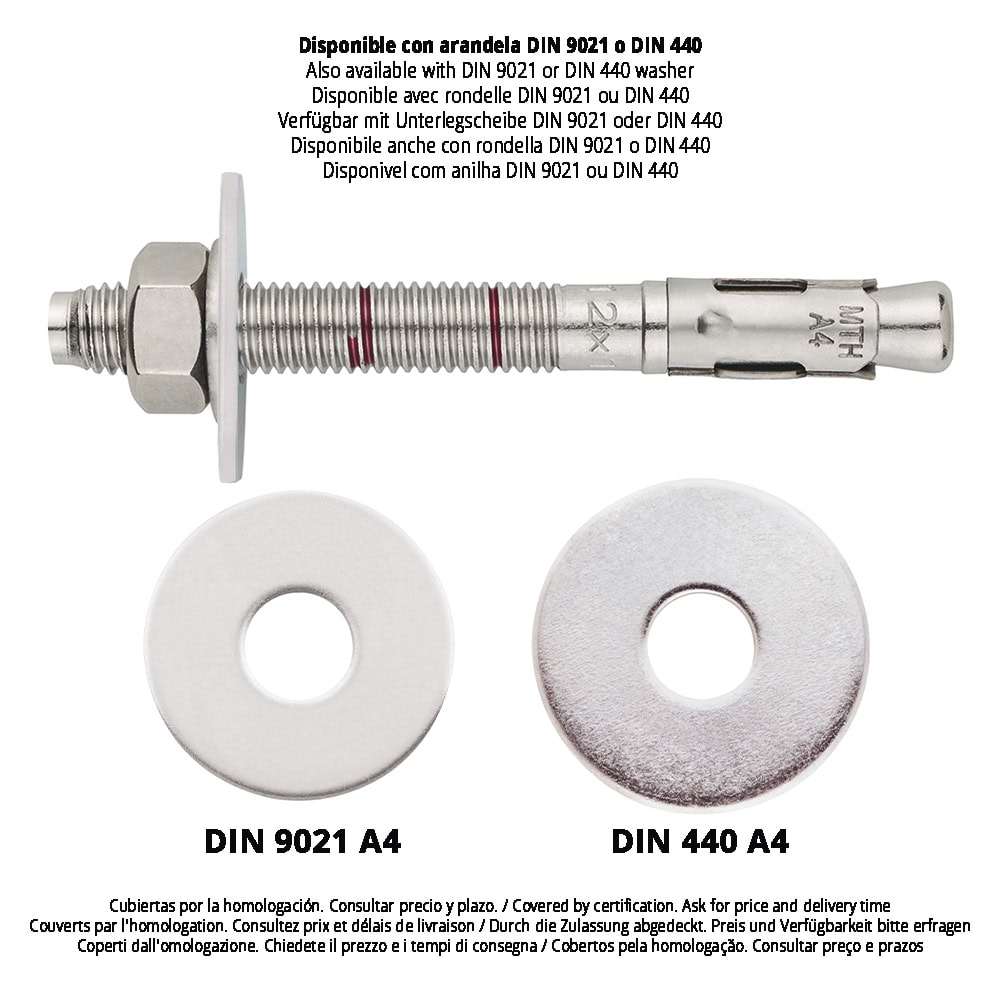

Through bolt anchor for heavy loads in uncracked concrete. Opt.7 ETA Assessed. A4 Stainless steel shaft. A4 Stainless steel clip
ASSESSMENTS AND CERTIFICATES
SIZE
THICKNESS MAX.FIXTURE (mm)
MIN. SUBSTRATE THICKNESS
AXIS LETTER
(LENGTH)
Pcs Box
Pcs Masterbox
Technical Info.
M6 x 45 Ø6
1
100
A
200
1.200

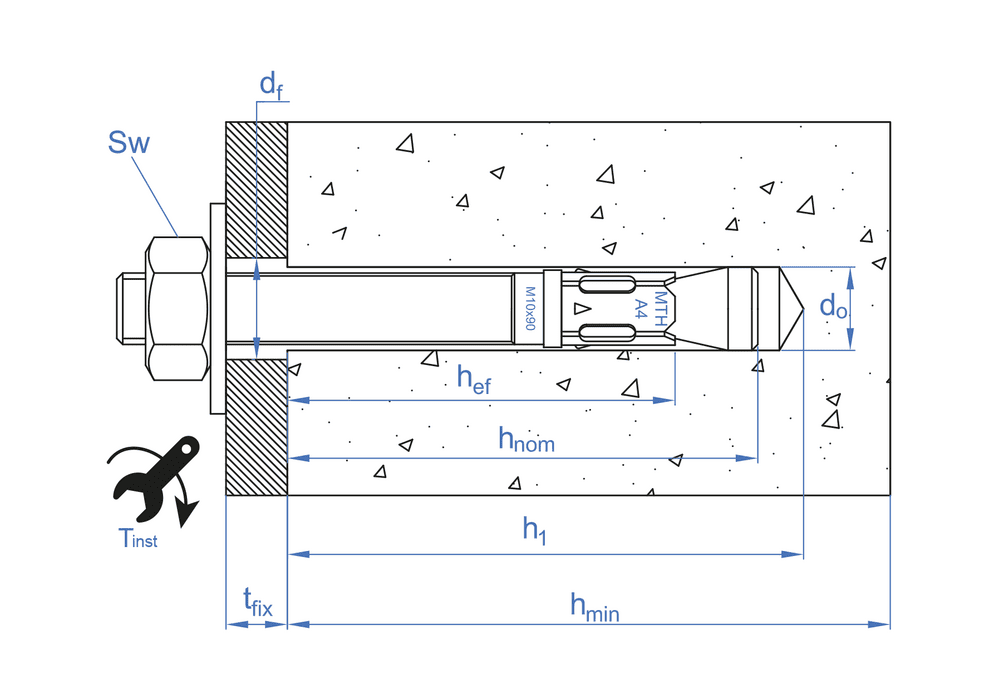

tfix - Max. fixture thickness1
SW - Installation key10
df - Ø Element to fix7
Tins - Torque (Nm)7
hef - Effective depth25
hnom - Min. anchor depth35
h1 - Drill hole depth min.40
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght45
M6 x 60 Ø6
2
100
B
200
1.200
tfix - Max. fixture thickness2
SW - Installation key10
df - Ø Element to fix7
Tins - Torque (Nm)7
hef - Effective depth40
hnom - Min. anchor depth50
h1 - Drill hole depth min.55
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght60
M6 x 80 Ø6
22
100
D
200
1.200
tfix - Max. fixture thickness22
SW - Installation key10
df - Ø Element to fix7
Tins - Torque (Nm)7
hef - Effective depth40
hnom - Min. anchor depth50
h1 - Drill hole depth min.55
d0 - Ø Drill6
hmin - Min. substrate thickness100
L - Lenght80
M8 x 50 Ø8
4
100
A
100
800
tfix - Max. fixture thickness4
SW - Installation key13
df - Ø Element to fix9
Tins - Torque (Nm)20
hef - Effective depth23
hnom - Min. anchor depth35
h1 - Drill hole depth min.40
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght50
M8 x 75 Ø8
5
100
C
100
600
tfix - Max. fixture thickness5
SW - Installation key13
df - Ø Element to fix9
Tins - Torque (Nm)20
hef - Effective depth48
hnom - Min. anchor depth60
h1 - Drill hole depth min.65
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght75
M8 x 90 Ø8
20
100
E
100
600
tfix - Max. fixture thickness20
SW - Installation key13
df - Ø Element to fix9
Tins - Torque (Nm)20
hef - Effective depth48
hnom - Min. anchor depth60
h1 - Drill hole depth min.65
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght90
M8 x 115 Ø8
45
100
G
100
400
tfix - Max. fixture thickness45
SW - Installation key13
df - Ø Element to fix9
Tins - Torque (Nm)20
hef - Effective depth48
hnom - Min. anchor depth60
h1 - Drill hole depth min.65
d0 - Ø Drill8
hmin - Min. substrate thickness100
L - Lenght115
M10 x 70 Ø10
3
100
C
100
400
tfix - Max. fixture thickness3
SW - Installation key17
df - Ø Element to fix12
Tins - Torque (Nm)35
hef - Effective depth42
hnom - Min. anchor depth54
h1 - Drill hole depth min.60
d0 - Ø Drill10
hmin - Min. substrate thickness100
L - Lenght70
M10 x 90 Ø10
10
110
E
100
400
tfix - Max. fixture thickness10
SW - Installation key17
df - Ø Element to fix12
Tins - Torque (Nm)35
hef - Effective depth55
hnom - Min. anchor depth67
h1 - Drill hole depth min.75
d0 - Ø Drill10
hmin - Min. substrate thickness110
L - Lenght90
M10 x 120 Ø10
40
110
G
50
300
tfix - Max. fixture thickness40
SW - Installation key17
df - Ø Element to fix12
Tins - Torque (Nm)35
hef - Effective depth55
hnom - Min. anchor depth67
h1 - Drill hole depth min.75
d0 - Ø Drill10
hmin - Min. substrate thickness110
L - Lenght120
M10 x 150 Ø10
70
110
I
50
200
tfix - Max. fixture thickness70
SW - Installation key17
df - Ø Element to fix12
Tins - Torque (Nm)35
hef - Effective depth55
hnom - Min. anchor depth67
h1 - Drill hole depth min.75
d0 - Ø Drill10
hmin - Min. substrate thickness110
L - Lenght150
M12 x 75 Ø12
5
100
C
50
300
tfix - Max. fixture thickness5
SW - Installation key19
df - Ø Element to fix14
Tins - Torque (Nm)60
hef - Effective depth43
hnom - Min. anchor depth55
h1 - Drill hole depth min.60
d0 - Ø Drill12
hmin - Min. substrate thickness100
L - Lenght75
M12 x 90 Ø12
13
100
D
50
200
tfix - Max. fixture thickness13
SW - Installation key19
df - Ø Element to fix14
Tins - Torque (Nm)60
hef - Effective depth50
hnom - Min. anchor depth62
h1 - Drill hole depth min.70
d0 - Ø Drill12
hmin - Min. substrate thickness100
L - Lenght90
M12 x 110 Ø12
18
130
F
50
200
tfix - Max. fixture thickness18
SW - Installation key19
df - Ø Element to fix14
Tins - Torque (Nm)60
hef - Effective depth65
hnom - Min. anchor depth77
h1 - Drill hole depth min.85
d0 - Ø Drill12
hmin - Min. substrate thickness130
L - Lenght110
M12 x 140 Ø12
48
130
I
50
200
tfix - Max. fixture thickness48
SW - Installation key19
df - Ø Element to fix14
Tins - Torque (Nm)60
hef - Effective depth65
hnom - Min. anchor depth77
h1 - Drill hole depth min.85
d0 - Ø Drill12
hmin - Min. substrate thickness130
L - Lenght140
M16 x 90 Ø16
4
100
D
25
150
tfix - Max. fixture thickness4
SW - Installation key24
df - Ø Element to fix18
Tins - Torque (Nm)120
hef - Effective depth49
hnom - Min. anchor depth69
h1 - Drill hole depth min.75
d0 - Ø Drill16
hmin - Min. substrate thickness100
L - Lenght90
M16 x 145 Ø16
23
168
I
25
100
tfix - Max. fixture thickness23
SW - Installation key24
df - Ø Element to fix18
Tins - Torque (Nm)120
hef - Effective depth84
hnom - Min. anchor depth104
h1 - Drill hole depth min.110
d0 - Ø Drill16
hmin - Min. substrate thickness168
L - Lenght145
M16 x 170 Ø16
48
168
K
25
75
tfix - Max. fixture thickness48
SW - Installation key24
df - Ø Element to fix18
Tins - Torque (Nm)120
hef - Effective depth84
hnom - Min. anchor depth104
h1 - Drill hole depth min.110
d0 - Ø Drill16
hmin - Min. substrate thickness168
L - Lenght170
M20 x 120 Ø20
5
145
G
20
40
tfix - Max. fixture thickness5
SW - Installation key30
df - Ø Element to fix22
Tins - Torque (Nm)240
hef - Effective depth71
hnom - Min. anchor depth93
h1 - Drill hole depth min.105
d0 - Ø Drill20
hmin - Min. substrate thickness145
L - Lenght120
M20 x 170 Ø20
23
206
K
20
40
tfix - Max. fixture thickness23
SW - Installation key30
df - Ø Element to fix22
Tins - Torque (Nm)240
hef - Effective depth103
hnom - Min. anchor depth125
h1 - Drill hole depth min.135
d0 - Ø Drill20
hmin - Min. substrate thickness206
L - Lenght170
M20 x 220 Ø20
73
206
O
20
40
tfix - Max. fixture thickness73
SW - Installation key30
df - Ø Element to fix22
Tins - Torque (Nm)240
hef - Effective depth103
hnom - Min. anchor depth125
h1 - Drill hole depth min.135
d0 - Ø Drill20
hmin - Min. substrate thickness206
L - Lenght220
Suitable for climbing equipment in outdoor areas without stress corrosion corrosion cracking problems. SCC (chlorine and sulphur ions). Recommendations are according to UNE EN:959 2021.
