Products / Fixing / Screw for direct fixing / With vulcanized EPDM-steel washer

Screw for direct fixing. With vulcanized EPDM-steel washer

SizeINSTALLATION KEY [SW]DRILL ØMin. Order Qty.Pcs. BoxPcs. MasterboxTechnical Info.
6,5 x 32 P16 Ø58 + ranura501.0002.000

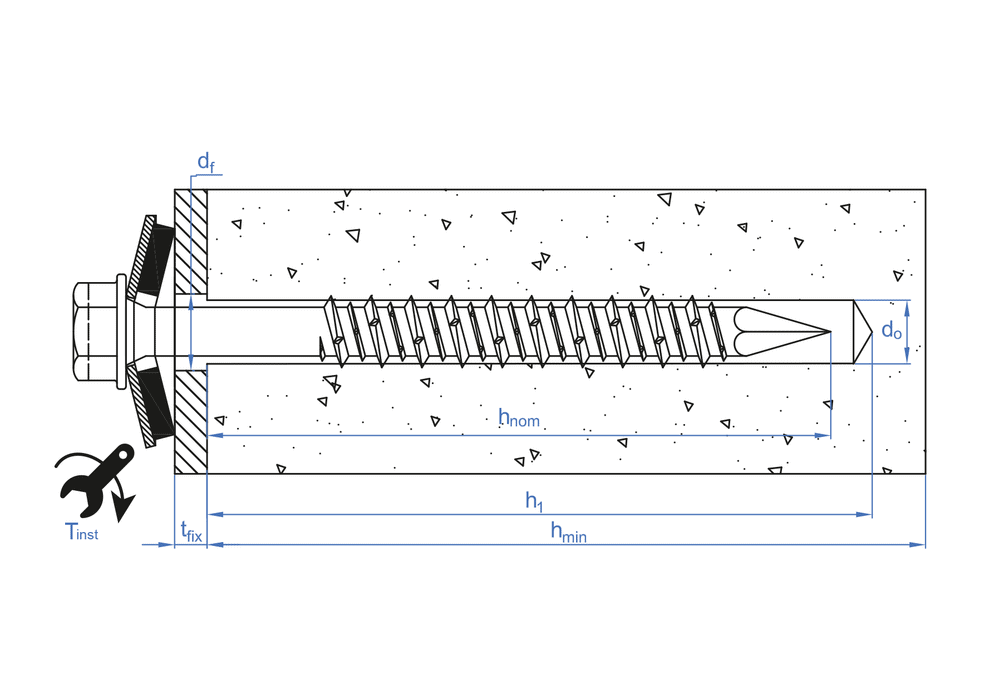

  • tfix - Max. fixture thickness7
  • SW - Installation key8 + ranura
  • df - Ø Element to fix8
  • Tins - Torque (Nm)12
  • hnom - Min. anchor depth28
  • h1 - Drill hole depth min.40
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness100
  • L - Lenght32
6,5 x 45 P16 Ø58 + ranura505001.500
  • tfix - Max. fixture thickness5
  • SW - Installation key8 + ranura
  • df - Ø Element to fix8
  • Tins - Torque (Nm)12
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness100
  • L - Lenght45
6,5 x 57 P16 Ø58 + ranura505001.500
  • tfix - Max. fixture thickness17
  • SW - Installation key8 + ranura
  • df - Ø Element to fix8
  • Tins - Torque (Nm)12
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness100
  • L - Lenght57
6,5 x 70 P16 Ø58 + ranura505001.000
  • tfix - Max. fixture thickness30
  • SW - Installation key8 + ranura
  • df - Ø Element to fix8
  • Tins - Torque (Nm)12
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness100
  • L - Lenght70
6,5 x 80 P16 Ø58 + ranura50250750
  • tfix - Max. fixture thickness40
  • SW - Installation key8 + ranura
  • df - Ø Element to fix8
  • Tins - Torque (Nm)12
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness100
  • L - Lenght80
6,5 x 100 P16 Ø58 + ranura50250750
  • tfix - Max. fixture thickness60
  • SW - Installation key8 + ranura
  • df - Ø Element to fix8
  • Tins - Torque (Nm)12
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness100
  • L - Lenght100
6,5 x 125 P16 Ø58 + ranura50250500
  • tfix - Max. fixture thickness85
  • SW - Installation key8 + ranura
  • df - Ø Element to fix8
  • Tins - Torque (Nm)12
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.50
  • d0 - Ø Drill5
  • hmin - Min. substrate thickness100
  • L - Lenght125

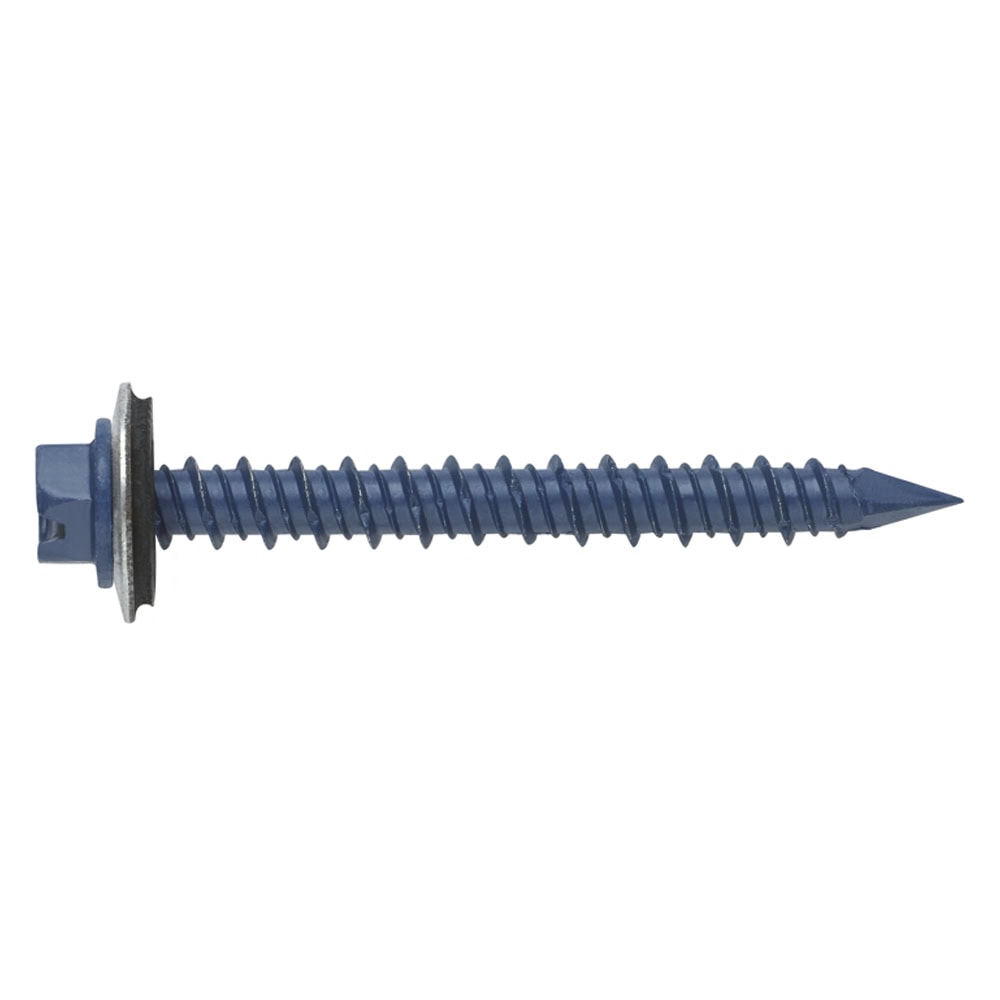

  • [DIRECT FASTENING SCREW] Screw for concrete, solid brick, block or prefabricated panels, with hexagonal head and slot. Can be installed directly on the material without the need for plugs or other fasteners.
  • [DOES NOT DAMAGE CONCRETE] Does not produce expansion forces, allowing for firm fastening without cracking the material.
  • [BUILT-IN WASHER] Includes a galvanised washer with EPDM rubber to ensure watertight joints.
  • [WIDE RANGE OF APPLICATIONS] Can be used to fix elements such as sandwich panels or door and window frames safely, easily and effectively.
  • [BLUE RUSPERT COATING] Made of carbon steel with a blue ruspert coating, which protects the part from corrosion.
  • Air-conditioning units
  • Signs
  • Lantern
  • Banners
  • Window grilles
  • Signs
  • Road railings
  • Wooden handrails
