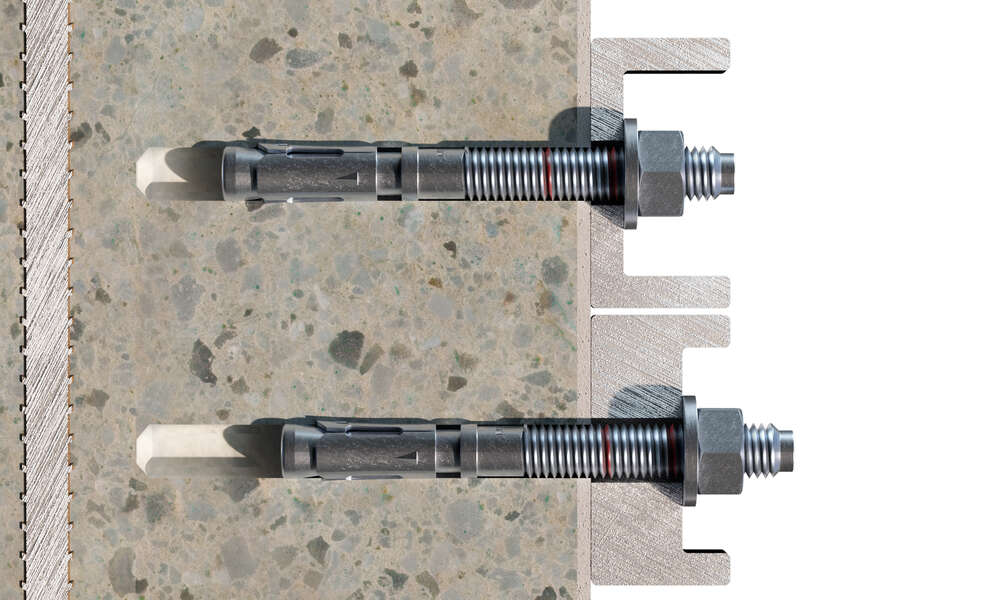

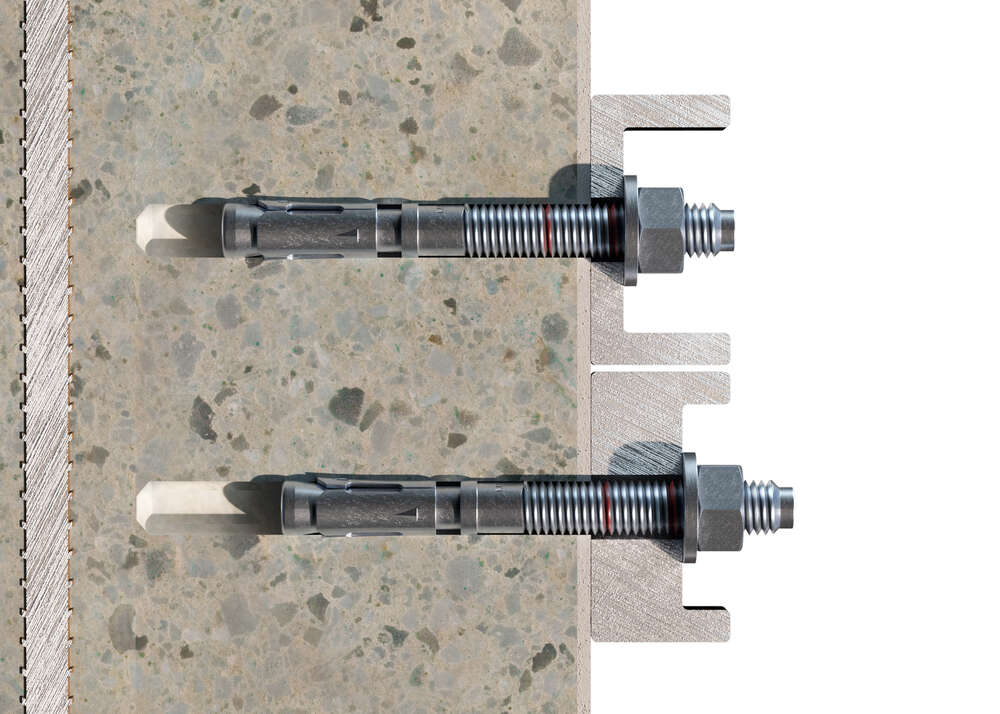

Through bolt anchor for heavy loads in uncracked concrete. Opt.7 ETA Assessed. Zinc-plated shaft. Zinc-plated clip

SIZE	THICKNESS MAX.FIXTURE (mm)	MIN. SUBSTRATE THICKNESS	AXIS LETTER (LENGTH)	Pcs Box	Pcs Masterbox
M6 x 60 Ø6	2	100	B	200	1.200
	t_fix- Max. fixture thickness2 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght60
M6 x 70 Ø6	12	100	C	200	1.200
	t_fix- Max. fixture thickness12 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght70
M6 x 80 Ø6	22	100	D	200	1.200
	t_fix- Max. fixture thickness22 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght80
M6 x 90 Ø6	32	100	E	200	1.200
	t_fix- Max. fixture thickness32 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght90
M6 x 100 Ø6	42	100	E	200	800
	t_fix- Max. fixture thickness42 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght100
M6 x 110 Ø6	52	100	F	200	800
	t_fix- Max. fixture thickness52 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght110
M6 x 120 Ø6	62	100	G	100	600
	t_fix- Max. fixture thickness62 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght120
M6 x 130 Ø6	72	100	H	100	600
	t_fix- Max. fixture thickness72 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght130
M6 x 140 Ø6	82	100	I	100	400
	t_fix- Max. fixture thickness82 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght140
M6 x 150 Ø6	92	100	I	100	400
	t_fix- Max. fixture thickness92 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght150
M6 x 160 Ø6	102	100	J	100	400
	t_fix- Max. fixture thickness102 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght160
M6 x 170 Ø6	112	100	K	100	400
	t_fix- Max. fixture thickness112 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght170
M6 x 180 Ø6	122	100	L	100	200
	t_fix- Max. fixture thickness122 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght180
M8 x 60 Ø8	3	100	B	100	600
	t_fix- Max. fixture thickness3 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth35 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.50 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght60
M8 x 75 Ø8	5	100	C	100	600
	t_fix- Max. fixture thickness5 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
M8 x 90 Ø8	20	100	E	100	600
	t_fix- Max. fixture thickness20 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght90
M8 x 100 Ø8	30	100	E	100	400
	t_fix- Max. fixture thickness30 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght100
M8 x 115 Ø8	45	100	G	100	400
	t_fix- Max. fixture thickness45 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght115
M8 x 120 Ø8	50	100	G	100	400
	t_fix- Max. fixture thickness50 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght120
M8 x 130 Ø8	60	100	H	100	400
	t_fix- Max. fixture thickness60 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght130
M8 x 155 Ø8	85	100	J	100	200
	t_fix- Max. fixture thickness85 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght155
M10 x 70 Ø10	3	100	C	100	400
	t_fix- Max. fixture thickness3 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth42 h_nom - Min. anchor depth54 h₁ - Drill hole depth min.60 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght70
M10 x 80 Ø10	13	100	D	100	400
	t_fix- Max. fixture thickness13 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth42 h_nom - Min. anchor depth54 h₁ - Drill hole depth min.60 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght80
M10 x 90 Ø10	10	110	E	100	400
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght90
M10 x 100 Ø10	20	110	E	100	400
	t_fix- Max. fixture thickness20 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght100
M10 x 120 Ø10	40	110	G	50	300
	t_fix- Max. fixture thickness40 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght120
M10 x 140 Ø10	60	110	H	50	200
	t_fix- Max. fixture thickness60 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght140
M10 x 150 Ø10	70	110	I	50	200
	t_fix- Max. fixture thickness70 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght150
M10 x 160 Ø10	80	110	J	50	200
	t_fix- Max. fixture thickness80 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght160
M10 x 170 Ø10	90	110	K	50	200
	t_fix- Max. fixture thickness90 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght170
M10 x 210 Ø10	130	110	N	50	150
	t_fix- Max. fixture thickness130 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght210
M10 x 230 Ø10	150	110	P	50	100
	t_fix- Max. fixture thickness150 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght230
M12 x 90 Ø12	13	100	E	50	200
	t_fix- Max. fixture thickness13 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth50 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.70 d₀ - Ø Drill12 h_min- Min. substrate thickness100 L - Lenght90
M12 x 100 Ø12	8	130	E	50	200
	t_fix- Max. fixture thickness8 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght100
M12 x 110 Ø12	18	130	F	50	200
	t_fix- Max. fixture thickness18 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght110
M12 x 120 Ø12	28	130	G	50	200
	t_fix- Max. fixture thickness28 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght120
M12 x 130 Ø12	38	130	H	50	200
	t_fix- Max. fixture thickness38 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght130
M12 x 140 Ø12	48	130	H	50	200
	t_fix- Max. fixture thickness48 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght140
M12 x 160 Ø12	68	130	J	50	100
	t_fix- Max. fixture thickness68 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght160
M12 x 180 Ø12	88	130	L	50	150
	t_fix- Max. fixture thickness88 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght180
M12 x 200 Ø12	108	130	M	50	100
	t_fix- Max. fixture thickness108 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght200
M12 x 220 Ø12	128	130	O	50	100
	t_fix- Max. fixture thickness128 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght220
M12 x 250 Ø12	158	130	Q	25	50
	t_fix- Max. fixture thickness158 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght250
M14 x 120 Ø14	12	150	G	25	100
	t_fix- Max. fixture thickness12 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght120
M14 x 145 Ø14	37	150	I	25	100
	t_fix- Max. fixture thickness37 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght145
M14 x 170 Ø14	62	150	K	25	100
	t_fix- Max. fixture thickness62 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght170
M14 x 220 Ø14	112	150	O	25	75
	t_fix- Max. fixture thickness112 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght220
M14 x 250 Ø14	142	150	Q	25	50
	t_fix- Max. fixture thickness142 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght250
M16 x 125 Ø16	3	168	G	25	100
	t_fix- Max. fixture thickness3 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght125
M16 x 145 Ø16	23	168	I	25	100
	t_fix- Max. fixture thickness23 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght145
M16 x 170 Ø16	48	168	K	25	50
	t_fix- Max. fixture thickness48 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght170
M16 x 220 Ø16	98	168	O	25	50
	t_fix- Max. fixture thickness98 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght220
M16 x 250 Ø16	128	168	Q	25	50
	t_fix- Max. fixture thickness128 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght250
M16 x 280 Ø16	158	168	S	25	50
	t_fix- Max. fixture thickness158 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght280
M20 x 170 Ø20	23	206	K	20	40
	t_fix- Max. fixture thickness23 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth103 h_nom - Min. anchor depth125 h₁ - Drill hole depth min.135 d₀ - Ø Drill20 h_min- Min. substrate thickness206 L - Lenght170
M20 x 220 Ø20	73	206	O	20	40
	t_fix- Max. fixture thickness73 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth103 h_nom - Min. anchor depth125 h₁ - Drill hole depth min.135 d₀ - Ø Drill20 h_min- Min. substrate thickness206 L - Lenght220
M20 x 270 Ø20	123	206	S	20	40
	t_fix- Max. fixture thickness123 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth103 h_nom - Min. anchor depth125 h₁ - Drill hole depth min.135 d₀ - Ø Drill20 h_min- Min. substrate thickness206 L - Lenght270

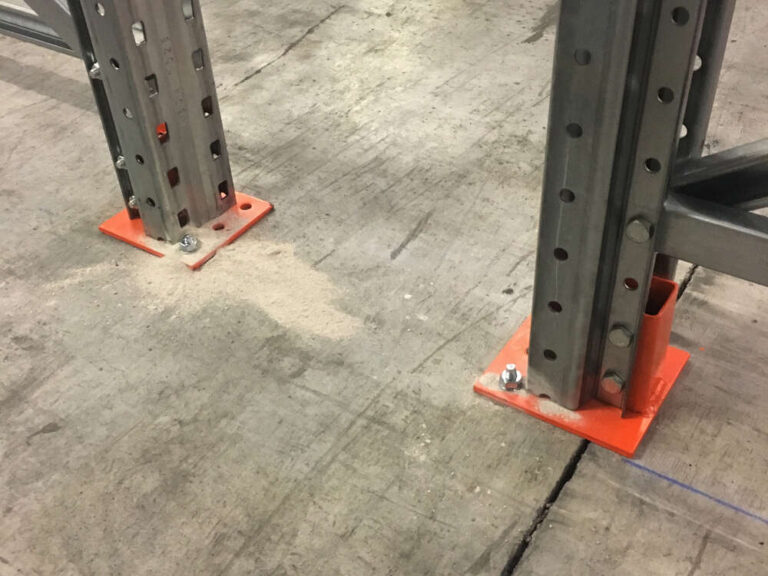

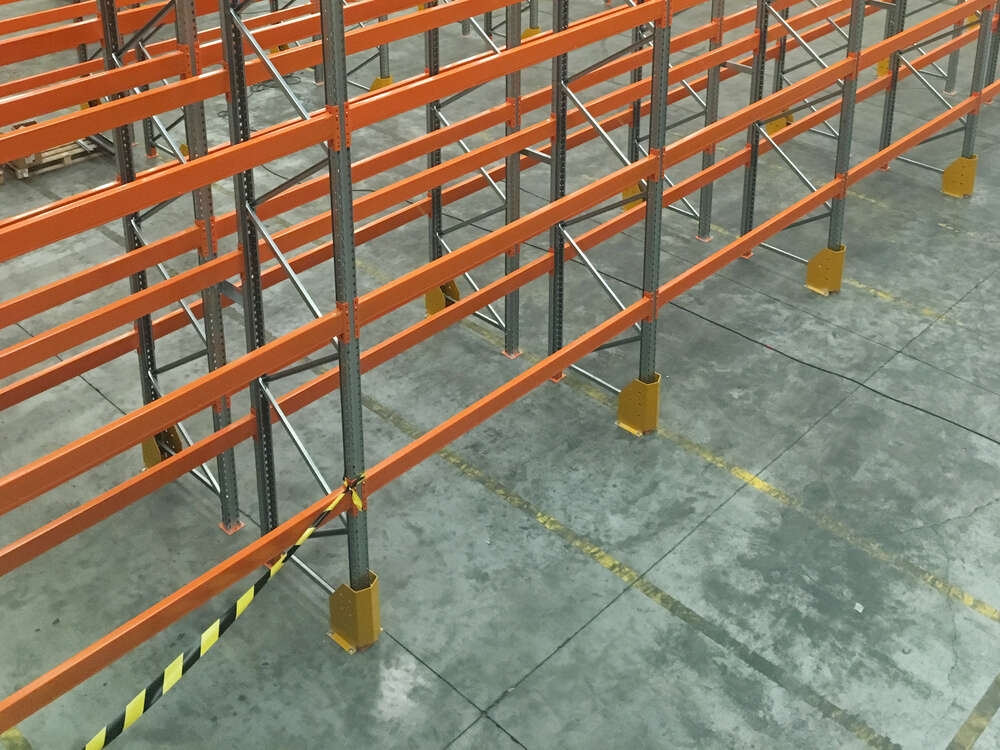

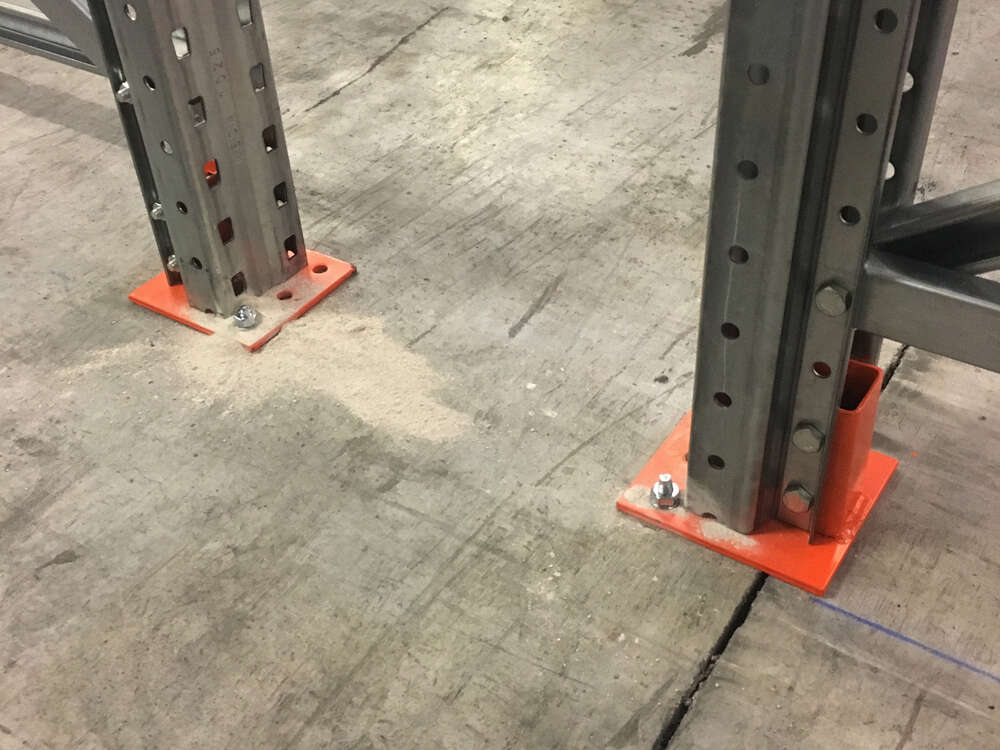

Fixing of shelves
Steel structures
Protections
Street furniture
Machinery
Wooden structures
Antennae
Balcony railings
Road railings
Wooden railings
Beach railings
Ceiling lights
False ceilings
Ceilings
