Products / Fixing / Through bolt anchor for heavy loads / Zinc-plated shaft. Zinc-plated clip

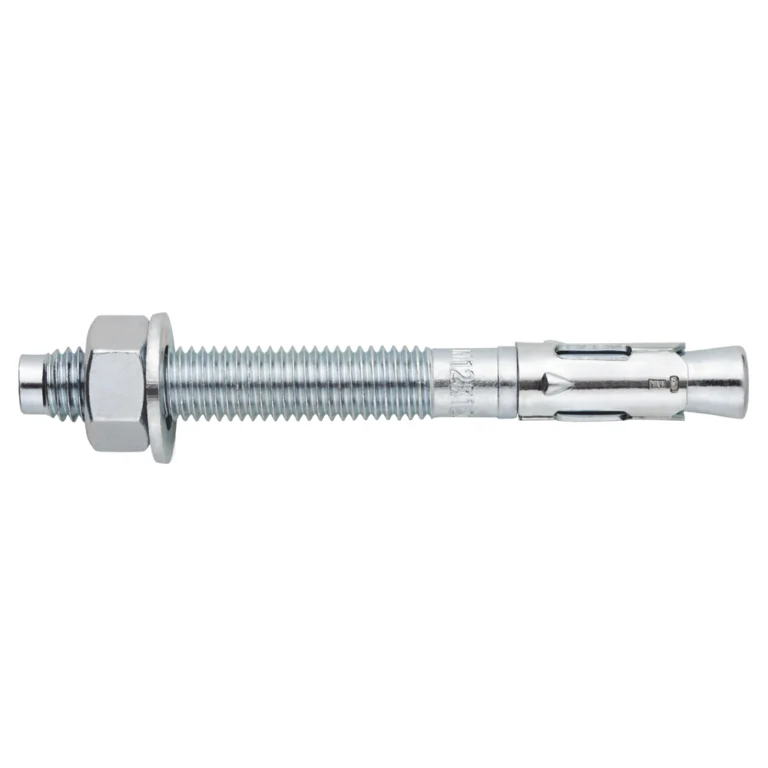

Through bolt anchor for heavy loads. Zinc-plated shaft. Zinc-plated clip

Size	THICKNESS MAX.FIXTURE [mm]	MIN. SUBSTRATE THICKNESS	Min. Order Qty.	Pcs. Box	Pcs. Masterbox
M6 x 45 Ø6	1	100	0	200	1.200

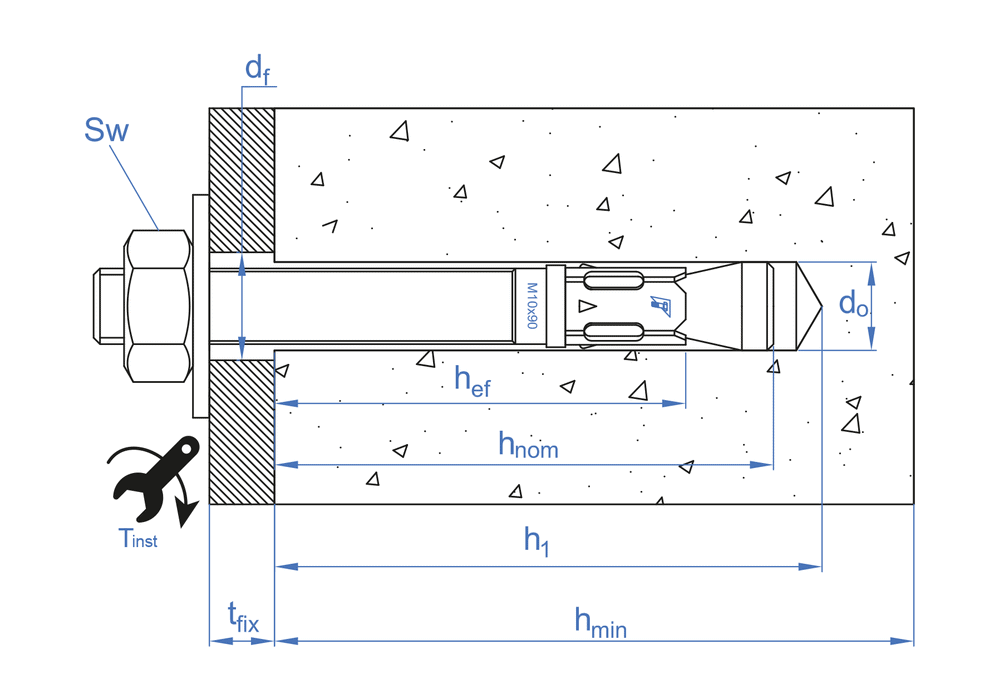

	t_fix- Max. fixture thickness1 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth25 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.40 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght45
M6 x 55 Ø6	11	100	0	200	1.200
	t_fix- Max. fixture thickness11 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth25 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.40 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght55
M6 x 60 Ø6	2	100	0	200	1.200
	t_fix- Max. fixture thickness2 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght60
M6 x 65 Ø6	7	100	0	200	1.200
	t_fix- Max. fixture thickness7 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght65
M6 x 70 Ø6	12	100	0	200	1.200
	t_fix- Max. fixture thickness12 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght70
M6 x 80 Ø6	22	100	0	200	1.200
	t_fix- Max. fixture thickness22 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght80
M6 x 85 Ø6	27	100	0	200	1.200
	t_fix- Max. fixture thickness27 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght85
M6 x 90 Ø6	32	100	0	200	1.200
	t_fix- Max. fixture thickness32 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght90
M6 x 100 Ø6	42	100	0	200	800
	t_fix- Max. fixture thickness42 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght100
M6 x 110 Ø6	52	100	0	200	800
	t_fix- Max. fixture thickness52 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght110
M6 x 120 Ø6	62	100	0	100	600
	t_fix- Max. fixture thickness62 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght120
M6 x 130 Ø6	72	100	0	100	600
	t_fix- Max. fixture thickness72 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght130
M6 x 140 Ø6	82	100	0	100	600
	t_fix- Max. fixture thickness82 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght140
M6 x 150 Ø6	92	100	0	100	600
	t_fix- Max. fixture thickness92 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght150
M6 x 160 Ø6	102	100	0	100	400
	t_fix- Max. fixture thickness102 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght160
M6 x 170 Ø6	112	100	0	100	400
	t_fix- Max. fixture thickness112 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght170
M6 x 180 Ø6	122	100	0	100	300
	t_fix- Max. fixture thickness122 SW - Installation key10 d_f - Ø Element to fix7 T_ins - Torque (Nm)7 h_ef - Effective depth40 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.55 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght180
M8 x 50 Ø8	4	100	0	100	800
	t_fix- Max. fixture thickness4 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth23 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.40 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght50
M8 x 60 Ø8	3	100	0	100	800
	t_fix- Max. fixture thickness3 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth35 h_nom - Min. anchor depth47 h₁ - Drill hole depth min.50 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght60
M8 x 65 Ø8	8	100	0	100	600
	t_fix- Max. fixture thickness8 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth35 h_nom - Min. anchor depth47 h₁ - Drill hole depth min.50 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght65
M8 x 75 Ø8	5	100	0	100	600
	t_fix- Max. fixture thickness5 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
M8 x 90 Ø8	20	100	0	100	600
	t_fix- Max. fixture thickness20 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght90
M8 x 115 Ø8	45	100	0	100	400
	t_fix- Max. fixture thickness45 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght115
M8 x 120 Ø8	50	100	0	100	400
	t_fix- Max. fixture thickness50 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght120
M8 x 130 Ø8	60	100	0	100	400
	t_fix- Max. fixture thickness60 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght130
M8 x 155 Ø8	85	100	0	100	200
	t_fix- Max. fixture thickness85 SW - Installation key13 d_f - Ø Element to fix9 T_ins - Torque (Nm)20 h_ef - Effective depth48 h_nom - Min. anchor depth60 h₁ - Drill hole depth min.65 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght155
M10 x 65 Ø10	1	100	0	100	400
	t_fix- Max. fixture thickness1 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth40 h_nom - Min. anchor depth52 h₁ - Drill hole depth min.55 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght65
M10 x 70 Ø10	3	100	0	100	400
	t_fix- Max. fixture thickness3 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth42 h_nom - Min. anchor depth54 h₁ - Drill hole depth min.60 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght70
M10 x 80 Ø10	13	100	0	100	400
	t_fix- Max. fixture thickness13 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth42 h_nom - Min. anchor depth54 h₁ - Drill hole depth min.60 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght80
M10 x 90 Ø10	10	110	0	100	400
	t_fix- Max. fixture thickness10 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght90
M10 x 100 Ø10	20	110	0	100	400
	t_fix- Max. fixture thickness20 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght100
M10 x 120 Ø10	40	110	0	50	300
	t_fix- Max. fixture thickness40 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght120
M10 x 140 Ø10	60	110	0	50	200
	t_fix- Max. fixture thickness60 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght140
M10 x 150 Ø10	70	110	0	50	200
	t_fix- Max. fixture thickness70 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght150
M10 x 160 Ø10	80	110	0	50	200
	t_fix- Max. fixture thickness80 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght160
M10 x 170 Ø10	90	110	0	50	200
	t_fix- Max. fixture thickness90 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght170
M10 x 210 Ø10	130	110	0	50	150
	t_fix- Max. fixture thickness130 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght210
M10 x 230 Ø10	150	110	0	50	100
	t_fix- Max. fixture thickness150 SW - Installation key17 d_f - Ø Element to fix12 T_ins - Torque (Nm)35 h_ef - Effective depth55 h_nom - Min. anchor depth67 h₁ - Drill hole depth min.75 d₀ - Ø Drill10 h_min- Min. substrate thickness110 L - Lenght230
M12 x 75 Ø12	5	100	0	50	300
	t_fix- Max. fixture thickness5 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth43 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.60 d₀ - Ø Drill12 h_min- Min. substrate thickness100 L - Lenght75
M12 x 80 Ø12	3	100	0	50	300
	t_fix- Max. fixture thickness3 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth50 h_nom - Min. anchor depth62 h₁ - Drill hole depth min.70 d₀ - Ø Drill12 h_min- Min. substrate thickness100 L - Lenght80
M12 x 90 Ø12	13	100	0	50	200
	t_fix- Max. fixture thickness13 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth50 h_nom - Min. anchor depth62 h₁ - Drill hole depth min.70 d₀ - Ø Drill12 h_min- Min. substrate thickness100 L - Lenght90
M12 x 100 Ø12	8	130	0	50	200
	t_fix- Max. fixture thickness8 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght100
M12 x 110 Ø12	18	130	0	50	200
	t_fix- Max. fixture thickness18 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght110
M12 x 120 Ø12	28	130	0	50	200
	t_fix- Max. fixture thickness28 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght120
M12 x 140 Ø12	48	130	0	50	200
	t_fix- Max. fixture thickness48 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght140
M12 x 160 Ø12	68	130	0	50	100
	t_fix- Max. fixture thickness68 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght160
M12 x 180 Ø12	88	130	0	50	150
	t_fix- Max. fixture thickness88 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght180
M12 x 220 Ø12	128	130	0	50	100
	t_fix- Max. fixture thickness128 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght220
M12 x 250 Ø12	158	130	0	25	50
	t_fix- Max. fixture thickness158 SW - Installation key19 d_f - Ø Element to fix14 T_ins - Torque (Nm)60 h_ef - Effective depth65 h_nom - Min. anchor depth77 h₁ - Drill hole depth min.85 d₀ - Ø Drill12 h_min- Min. substrate thickness130 L - Lenght250
M14 x 80 Ø14	5	100	0	50	200
	t_fix- Max. fixture thickness5 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth42 h_nom - Min. anchor depth59 h₁ - Drill hole depth min.65 d₀ - Ø Drill14 h_min- Min. substrate thickness100 L - Lenght80
M14 x 100 Ø14	5	125	0	50	100
	t_fix- Max. fixture thickness5 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth62 h_nom - Min. anchor depth69 h₁ - Drill hole depth min.85 d₀ - Ø Drill14 h_min- Min. substrate thickness125 L - Lenght100
M14 x 120 Ø14	12	150	0	25	100
	t_fix- Max. fixture thickness12 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght120
M14 x 145 Ø14	37	150	0	25	100
	t_fix- Max. fixture thickness37 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght145
M14 x 170 Ø14	62	150	0	25	100
	t_fix- Max. fixture thickness62 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght170
M14 x 220 Ø14	112	150	0	25	75
	t_fix- Max. fixture thickness112 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght220
M14 x 250 Ø14	142	150	0	25	50
	t_fix- Max. fixture thickness142 SW - Installation key22 d_f - Ø Element to fix16 T_ins - Torque (Nm)90 h_ef - Effective depth75 h_nom - Min. anchor depth91 h₁ - Drill hole depth min.100 d₀ - Ø Drill14 h_min- Min. substrate thickness150 L - Lenght250
M16 x 90 Ø16	4	100	0	25	150
	t_fix- Max. fixture thickness4 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth49 h_nom - Min. anchor depth69 h₁ - Drill hole depth min.75 d₀ - Ø Drill16 h_min- Min. substrate thickness100 L - Lenght90
M16 x 110 Ø16	7	100	0	25	100
	t_fix- Max. fixture thickness7 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth49 h_nom - Min. anchor depth69 h₁ - Drill hole depth min.75 d₀ - Ø Drill16 h_min- Min. substrate thickness100 L - Lenght110
M16 x 125 Ø16	3	168	0	25	100
	t_fix- Max. fixture thickness3 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght125
M16 x 145 Ø16	23	168	0	25	100
	t_fix- Max. fixture thickness23 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght145
M16 x 170 Ø16	48	168	0	25	50
	t_fix- Max. fixture thickness48 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght170
M16 x 220 Ø16	98	168	0	25	50
	t_fix- Max. fixture thickness98 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght220
M16 x 250 Ø16	128	168	0	25	50
	t_fix- Max. fixture thickness128 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght250
M16 x 280 Ø16	158	168	0	25	50
	t_fix- Max. fixture thickness158 SW - Installation key24 d_f - Ø Element to fix18 T_ins - Torque (Nm)120 h_ef - Effective depth84 h_nom - Min. anchor depth104 h₁ - Drill hole depth min.110 d₀ - Ø Drill16 h_min- Min. substrate thickness168 L - Lenght280
M20 x 120 Ø20	5	145	0	20	40
	t_fix- Max. fixture thickness5 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth71 h_nom - Min. anchor depth93 h₁ - Drill hole depth min.105 d₀ - Ø Drill20 h_min- Min. substrate thickness145 L - Lenght120
M20 x 170 Ø20	23	206	0	20	40
	t_fix- Max. fixture thickness23 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth103 h_nom - Min. anchor depth125 h₁ - Drill hole depth min.135 d₀ - Ø Drill20 h_min- Min. substrate thickness206 L - Lenght170
M20 x 220 Ø20	73	206	0	20	40
	t_fix- Max. fixture thickness73 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth103 h_nom - Min. anchor depth125 h₁ - Drill hole depth min.135 d₀ - Ø Drill20 h_min- Min. substrate thickness206 L - Lenght220
M20 x 270 Ø20	123	206	0	20	40
	t_fix- Max. fixture thickness123 SW - Installation key30 d_f - Ø Element to fix22 T_ins - Torque (Nm)240 h_ef - Effective depth103 h_nom - Min. anchor depth125 h₁ - Drill hole depth min.135 d₀ - Ø Drill20 h_min- Min. substrate thickness206 L - Lenght270
M24 x 180 Ø24	10	250	0	10	20
	t_fix- Max. fixture thickness10 SW - Installation key36 d_f - Ø Element to fix26 T_ins - Torque (Nm)250 h_ef - Effective depth125 h_nom - Min. anchor depth143 h₁ - Drill hole depth min.155 d₀ - Ø Drill24 h_min- Min. substrate thickness250 L - Lenght180
M24 x 260 Ø24	80	250	0	10	20
	t_fix- Max. fixture thickness80 SW - Installation key36 d_f - Ø Element to fix26 T_ins - Torque (Nm)250 h_ef - Effective depth125 h_nom - Min. anchor depth143 h₁ - Drill hole depth min.155 d₀ - Ø Drill24 h_min- Min. substrate thickness250 L - Lenght260

【FRICTION-BASED OPERATION】 Torque-controlled wedge-type metal expansion anchor (friction-based operation) with external thread. Withstands heavy loads thanks to its friction-based operation.
【VERSATILITY】 Suitable for a wide variety of anchoring applications, such as structural fixings in non-cracked concrete, safety barriers, fixing of signs, machinery, boilers, road signs, billboards or fixing of timber structures to concrete.
【APPLICATIONS】 Recommended for high-load installations. Recommended for installation in non-cracked concrete and/or reinforced concrete. (Non-cracked concrete of grades C20/25 to C50/60). Suitable for two installation depths and for static or quasi-static loads.
【HIGH-QUALITY MANUFACTURE】 Manufactured from stamped carbon steel with a zinc coating (suitable for use in indoor environments without condensation (category C1 according to ISO 9223), for a period of 50 years).
【VARIOUS SIZES】 A range of lengths and diameters, from M6 x 45 Ø6 mm to M20 x 220 Ø20 mm.

Fixing of shelves

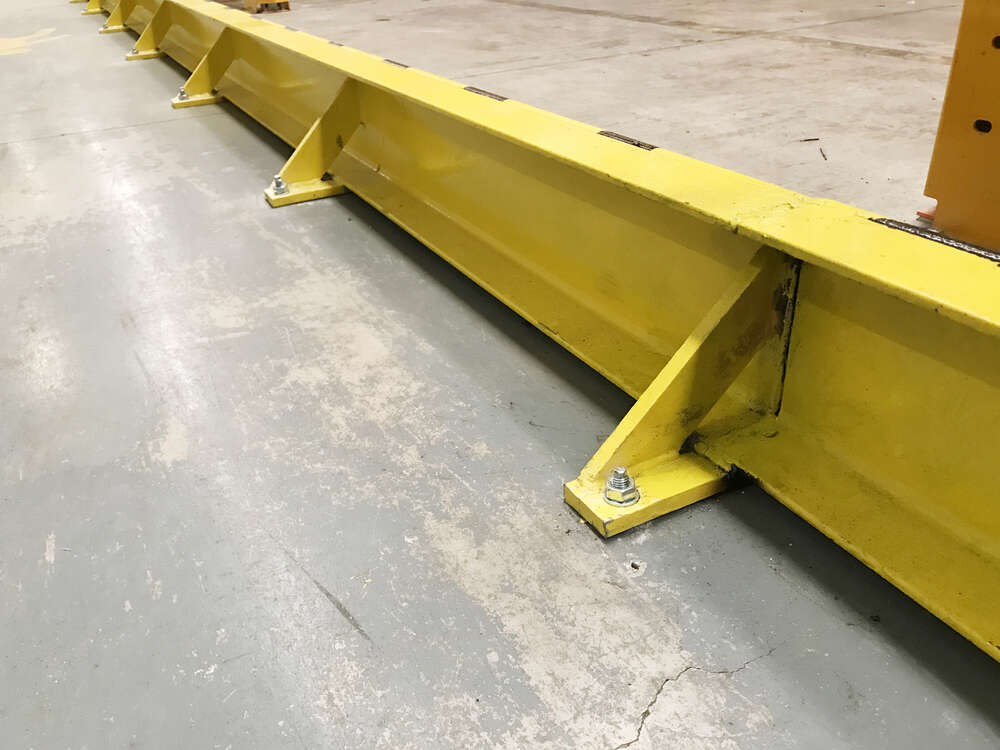

Steel structures
Protections
Street furniture

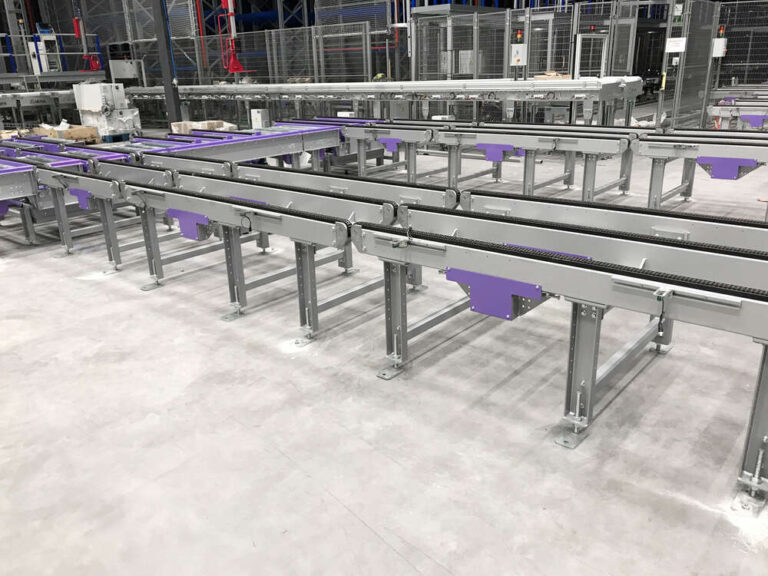

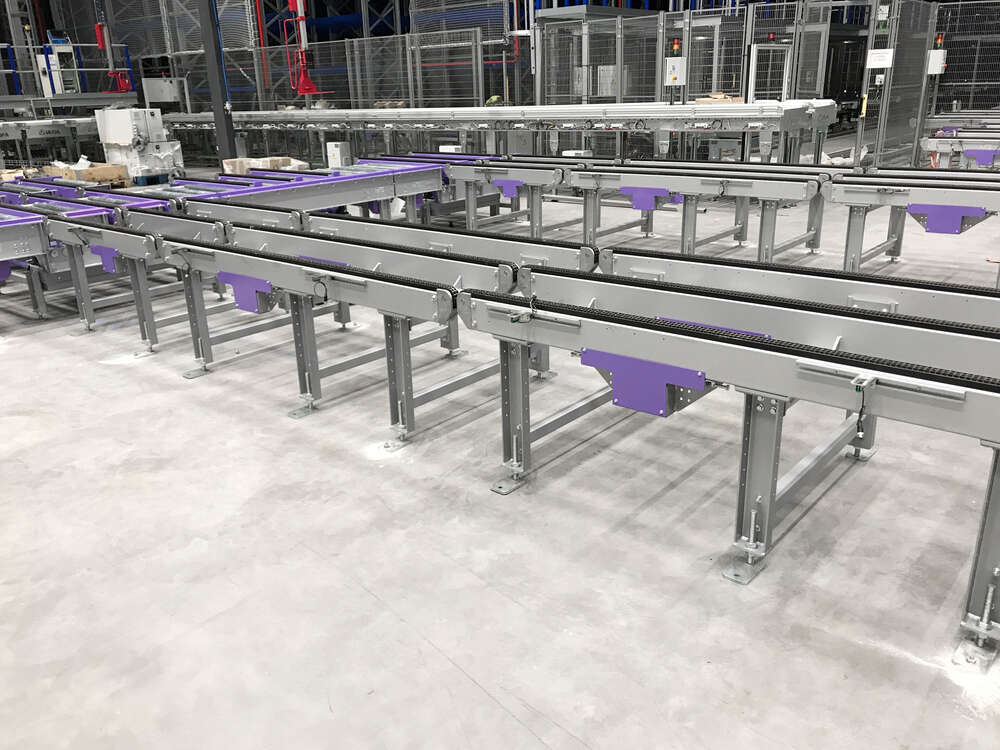

Machinery
Wooden structures
Antennae

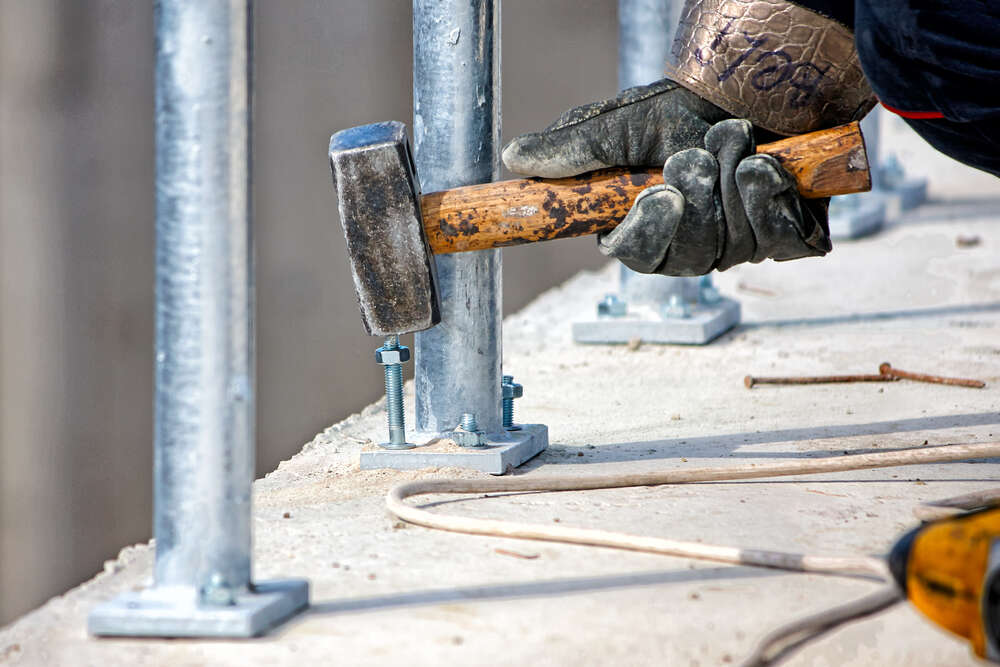

Balcony railings
Road railings
Wooden railings
Beach railings
Ceiling lights
False ceilings
Ceilings

260330

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Hexagon head

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Hexagon head

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. Zinc-plated shaft. Stainless steel clip

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. Zinc-plated shaft. ATLANTIS C3-L clip

Through bolt anchor for heavy loads in uncracked concrete. Opt.7 ETA Assessed. A4 Stainless steel shaft. A4 Stainless steel clip

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. ATLANTIS C3-L shaft. Stainless steel clip

How can we
help you?

If you have any questions, or need more information, please write to us using this form:

Name

Company

Country

Email address

Phone

Message

Aceptación datos

I accept the use of my personal data by the technical staff of NINGBO LONDEX INDUSTRIALS CO.,L.T.D. (Tax ID CN-33028278043) to contact me exclusively for my training and technical advisement regarding their products

Aceptación políticas

I have read and accept the Legal Notice and Privacy Policy. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

NINGBO LONDEX INDUSTRIALS CO., L.T.D. informs that the personal data provided voluntarily on this website will be processed and incorporated into the corresponding files, responsibility of NINGBO LONDEX INDUSTRIALS CO., L.T.D., is reported at the time of personal data collection, although, according to the specific case, its purpose may be any of the following: attention to your referred request, complaint or question, established relationship maintenance, comprehensive and commercial customer management, accounting and billing or sending communications, including electronic media, news and activities related to NINGBO LONDEX INDUSTRIALS CO., L.T.D.

The data in our files are strictly confidential and shall be treated with the utmost confidentiality and shall comply with all the requirements provided for the General Data Protection Regulation (GDPR) 2016.

According to Data Protection legislation, you are strongly advised not to send high-level personal data, such as those relating to health, as they are not encoded or encrypted. Should these details be sent, it is done so under your sole responsibility.

The user may at any time exercise their rights of access, rectification, cancellation and opposition under the provisions of the General Data Protection Regulation (GDPR) 2016 by sending a letter together with a photocopy of your ID, to: NINGBO LONDEX INDUSTRIALS CO., L.T.D. First Seashore Road · Hangzhou Bay New Zone · Cixi City · Zhejiang Province · CHINA · 315336.

formación técnica

Nuestro departamento de ingeniería pone a tu disposición formaciones específicas y personalizadas en los diferentes temas relacionados con el mundo de la fijación: fijaciones metálicas o químicas, sistemas de instalación, normativas, realización de cálculos…

Nombre

Correo electrónico

Cuéntanos tus necesidades

Aceptación datos

Acepto el uso de mis datos personales por el personal técnico de Técnicas Expansivas SL (CIF B-26220491) para que me contacte exclusivamente para mi formación y asesoramiento técnico de sus productos

Aceptación políticas

He leído y acepto el Aviso Legal y la Política de Privacidad.
Este sitio está protegido por reCAPTCHA y la política de privacidad y términos de servicio de Google aplicados.

TÉCNICAS EXPANSIVAS S.L. informa que los datos de carácter personal facilitados de forma voluntaria, cuya finalidad, cesiones previstas y demás circunstancias, se informa en el momento de la recogida de los datos de carácter personal, si bien, según el caso concreto, su finalidad, puede ser alguna de las siguientes, la atención a su solicitud, queja o duda planteada, mantenimiento de la relación establecida, la gestión integral y comercial de clientes, contabilidad y facturación o envío de comunicaciones, incluso por medios electrónicos, de noticias y actividades relacionadas con TÉCNICAS EXPANSIVAS S.L.

Los datos incorporados a nuestros ficheros son absolutamente confidenciales y serán tratados con la máxima confidencialidad y cumpliendo todos los requisitos que obliga el Reglamento General de Protección de Datos (RGPD) de 27 de abril de 2016. Los datos quedarán registrados en nuestros ficheros por el tiempo necesario que dure la motivación para la que fueron recabados. El plazo durante el cual se conservarán los datos personales será aquel que marque la legislación vigente y siempre durante el tiempo que medie en la prestación del servicio para el que fueron comunicados.

Se recomienda no enviar datos personales de nivel alto, según la legislación de protección de datos, como pueden ser los relativos a salud, pues los mismos no viajan cifrados o encriptados. De modo que si VD, los envía será de su exclusiva responsabilidad.

El usuario podrá ejercer en cualquier momento sus derechos para acceder, rectificar, oponerse, cancelarlos, limitar su tratamiento o solicitar su portabilidad con arreglo a lo previsto en el Reglamento General de Protección de Datos (RGPD) de 27 de abril de 2016 enviando una carta a su responsable de tratamiento: Valentín Gómez, Gerente, junto con la fotocopia de su DNI, a TÉCNICAS EXPANSIVAS SL | P.I. La Portalada II | c/ Segador 13, 26006 | Logroño (La Rioja) o a través de la dirección de correo electrónico info@indexfix.com.

visitas a obra

La relación con nuestros clientes no finaliza con la venta de nuestros productos. Desde INDEX® entendemos que en muchas ocasiones es necesario un acompañamiento en obra donde nuestra experiencia es la mejor aliada para que todo encaje a la perfección. Nuestros ingenieros y técnicos apoyarán a los responsables de cada proyecto en la planificación y selección de la mejor solución con el fin de ahorrar tiempo y costes de la manera más efectiva.

Nombre

Correo electrónico

Cuéntanos tus necesidades

Aceptación datos

Aceptación políticas

He leído y acepto el Aviso Legal y la Política de Privacidad.
Este sitio está protegido por reCAPTCHA y la política de privacidad y términos de servicio de Google aplicados.

SERVICIOS DE INGENIERÍA Y REALIZACIÓN DE CÁLCULOS

Nombre

Correo electrónico

Cuéntanos tus necesidades

Aceptación datos

Aceptación políticas

He leído y acepto el Aviso Legal y la Política de Privacidad.
Este sitio está protegido por reCAPTCHA y la política de privacidad y términos de servicio de Google aplicados.

Through bolt anchor for heavy loads. Zinc-plated shaft. Zinc-plated clip

Related Products

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Hexagon head

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Hexagon head

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. Zinc-plated shaft. Stainless steel clip

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. Zinc-plated shaft. ATLANTIS C3-L clip

Through bolt anchor for heavy loads in uncracked concrete. Opt.7 ETA Assessed. A4 Stainless steel shaft. A4 Stainless steel clip

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. ATLANTIS C3-L shaft. Stainless steel clip

How can we
help you?

MTA

formación técnica

visitas a obra

SERVICIOS DE INGENIERÍA Y REALIZACIÓN DE CÁLCULOS

Through bolt anchor for heavy loads. Zinc-plated shaft. Zinc-plated clip

Related Products

Concrete screw anchor with ATLANTIS C3-H coating. Opt.1 ETA Assessed. Hexagon head

Concrete screw anchor with zinc plated coating. Opt.1 ETA Assessed. Hexagon head

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. Zinc-plated shaft. Stainless steel clip

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. Zinc-plated shaft. ATLANTIS C3-L clip

Through bolt anchor for heavy loads in uncracked concrete. Opt.7 ETA Assessed. A4 Stainless steel shaft. A4 Stainless steel clip

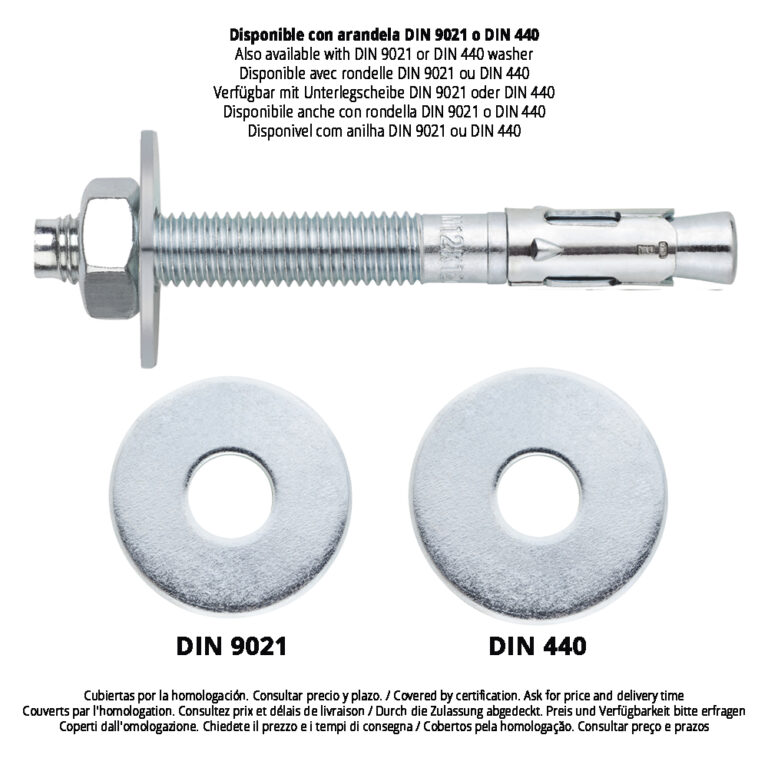

Through bolt anchor for heavy loads in cracked & uncracked concrete. Opt.1 ETA Assessed. ATLANTIS C3-L shaft. Stainless steel clip

How can wehelp you?

MTA

formación técnica

visitas a obra

SERVICIOS DE INGENIERÍA Y REALIZACIÓN DE CÁLCULOS

How can we
help you?
